Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

RR1110RS - Datasheet

MBA

Category Information

Rollers - Drive

Drive Rollers. Neoprene 60 durometer black ground outside diameter drive rollers

    Product Data

    • Outside Diameter (A) : 22.23 mm
      (Equiv. 0.875 in.)
    • Roller Width (B) 9.53 mm
      (Equiv. 0.375 in.)
    • Bore (C) 6.375 mm
      (Equiv. 0.251 in.)
    • Sleeve Diameter (D) 12.700 mm
    • Hub Diameter (E) 12.700 mm
    • Hub Height (F) 6.350 mm
    • Set Screw 8-32 UNC (4.17mm)
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • RR-1110
      • RR1110
      View full details

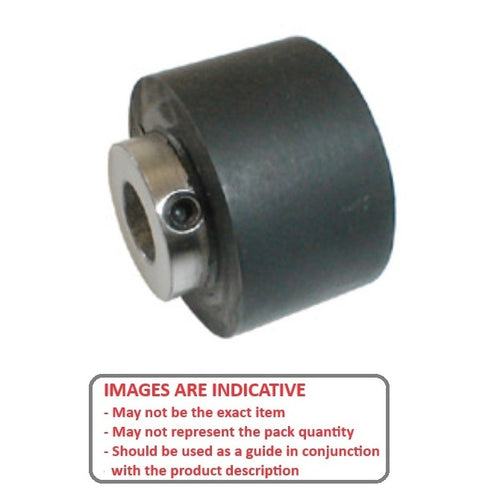

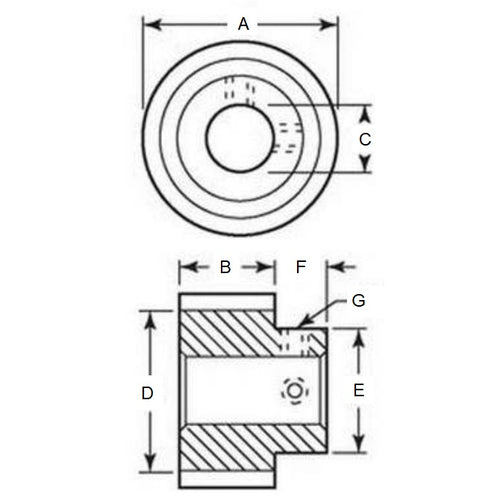

      RR1110RSDiagramRR1110RSImage
