Miniature Bearings Australia
RR1015RS - Datasheet
MBA
Category Information
Rollers - Idler with Bearing - Urethane With Plain Sintered BearingUrethane With Plain Sintered Bearing Idler with Bearing Rollers. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

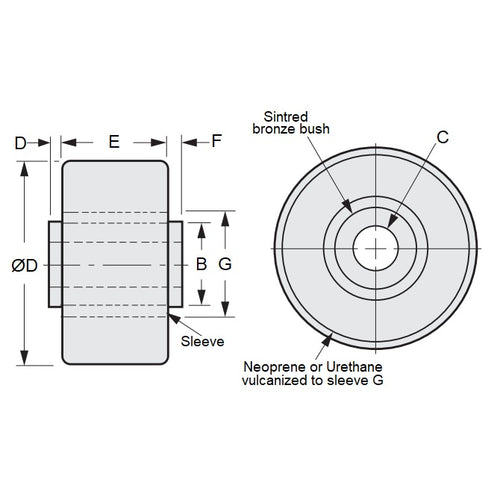

- Outside Diameter (A)
:
22.23
mm
(Equiv. 0.875 in.) - Bore (d)
4.775
mm
(Equiv. 0.188 in.) - Roller Width (B)
9.53
mm
(Equiv. 0.375 in.) - Roller Material Neoprene
- Roller Hardness 55 Durometer
- Bearing Type Sintered Bronze Bearing
- Bearing Projection ( D / F ) 0.13 x 0.13 mm
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- RR1015
- RR-1015
