RRN-087 - Datasheet
MBA
Category Information

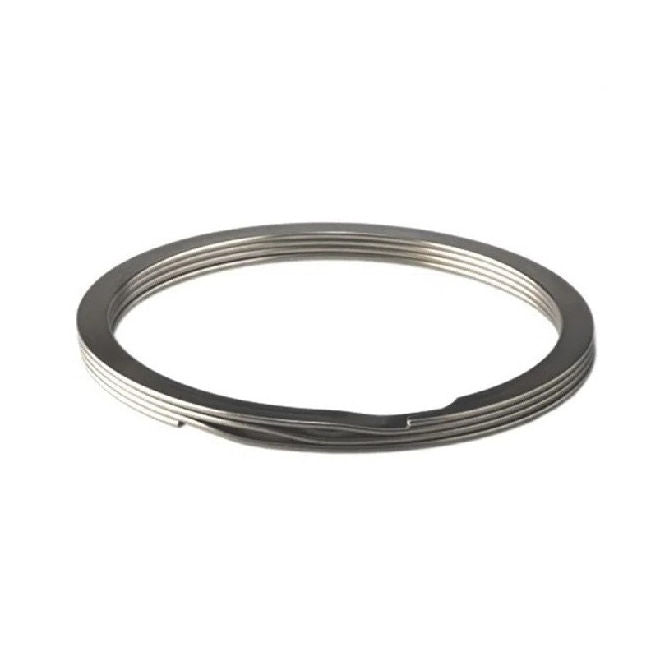

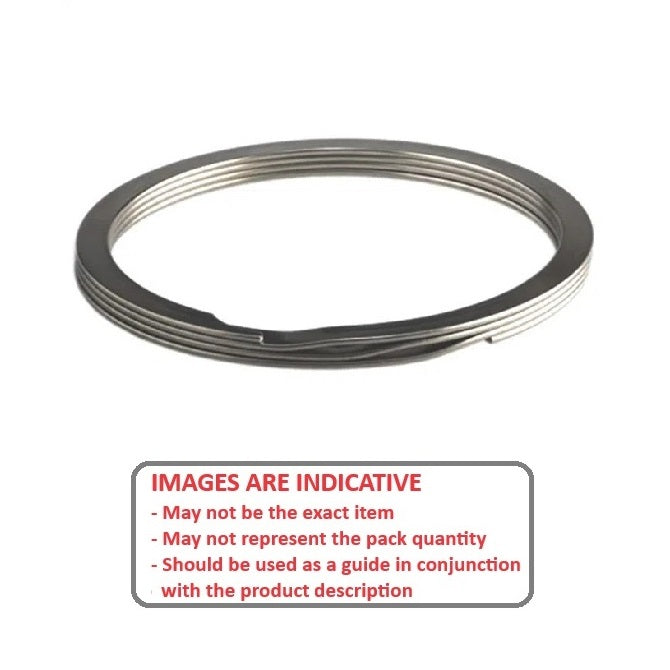

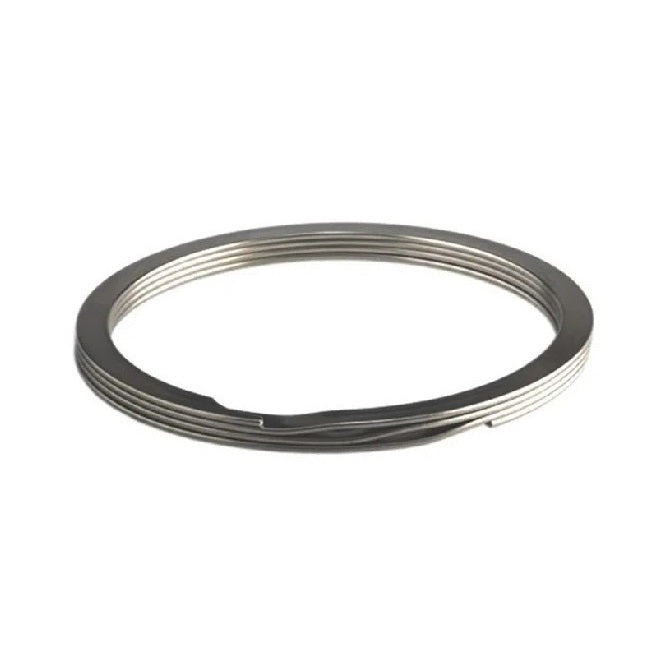

Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon SteelCarbon Steel Heavy Duty Spiral Rings Internal Retaining Rings. Includes AHI / WHM / AS3215 / RRN / MIL-R-27426B2 - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
- Requires no tools for removal.
- Equivalent to Associated Spring: AHI, Smalley: WHM, Spirolox and Ramsey: RRN, Aerospace AS3215, MIL-R-27426B2

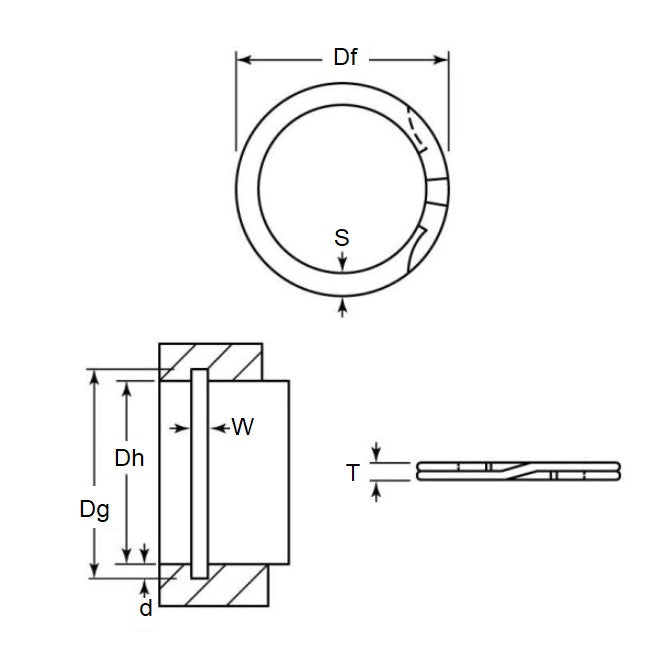

Product Data
- Housing Bore (B)
:
22.23
mm
(Equiv. 0.875 in.) - Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.) - Groove Dia. (Dg)
23.65
mm
(Equiv. 0.931 in.) - Approx. Loose Circlip OD (Dr) 23.72 mm + 0.33 / - 0.00
- Radial Wall (S) 2.16 mm +/- 0.10
- Groove Width (W) 1.21 mm +/- 0.07
- Approx. Loose Clip ID 19.4 +/- 0.04
- Groove Depth (d) 0.71
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 91985A151
- Associated Spring AHI-087
- Smalley WHM-087
- WHM087
- AHI087
