RRT-087 - Datasheet

MBA

Category Information

Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel

Carbon Steel Medium-Heavy Duty Spiral Rings Internal Retaining Rings. Includes Series AMI / WHT / Spirolox RRT - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
  • This two/three turn design is easier to install than the heavy duty RRN option.
  • Equivalent to Associated Spring: AMI, Smalley: WHT, Spirolox and Ramsey: RRT

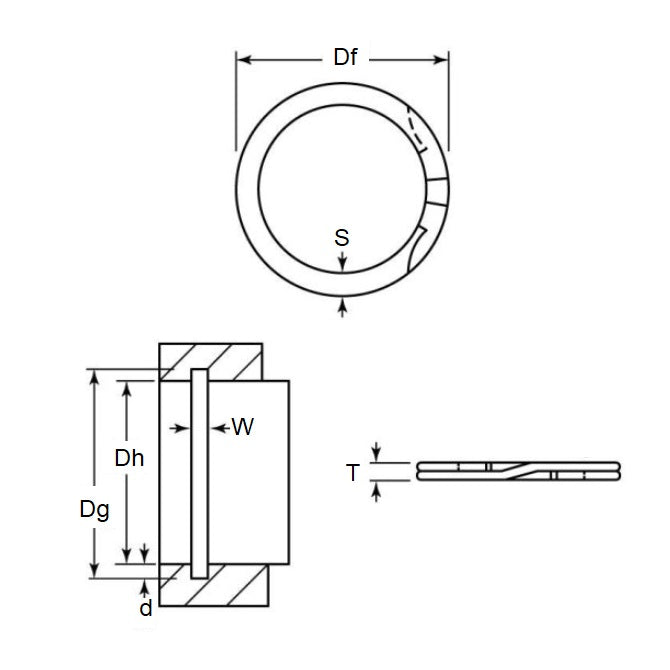

Product Data

  • Housing Bore (B) : 22.23 mm
    (Equiv. 0.875 in.)
  • Clip Thickness (T) 1.07 mm +/- 0.05
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 23.42 mm
    (Equiv. 0.922 in.)
  • Approx. Loose Circlip OD (Dr) 23.61 mm + 0.33 / - 0.00
  • Radial Wall (S) 1.65 mm +/- 0.10
  • Groove Width (W) 1.21 mm +/- 0.08
  • Approx. Loose Clip ID 20.31 +/- 0.04
  • Groove Depth (d) 0.61
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring AMI-087
  • Smalley WHT-087
  • WHT087
  • AMI087
View full details

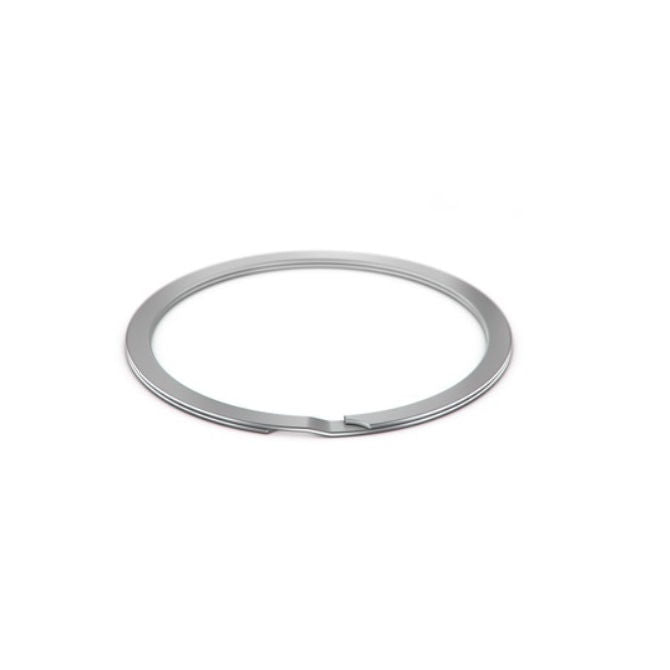

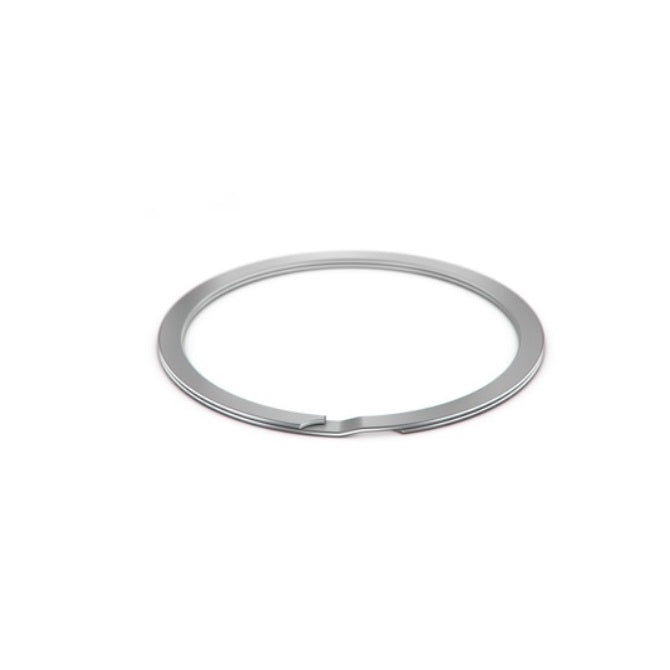

RRT-087DiagramRRT-087Image
