Miniature Bearings Australia
0R-0222-0165-SB - Datasheet
MBA
Category Information

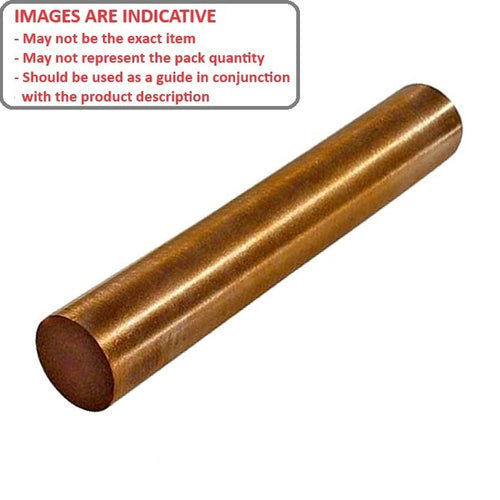

Rod - Round - Sintered BronzeSintered Bronze Round Rod. Sintered bronze rod is supplied oversized so it can be machine finished to the dimensions shown.
- An expanded range may be available on special order. Please enquire.
- Sizes listed are FINISHED SIZE. Product supplied will be larger to allow for machining.
- Oil impregnated porous bronze rod.
- Smaller diameters may not be supplied straight.
- B438 grade 1, Type 2 - AMS4805-D
- SAE 841 Type 1, Class A
Product Data
- Nominal Diameter (D)
:
22.23
mm
+ 0.15 / + 3.20
(Equiv. 0.875 in.) - Length (L)
165.1
mm
(Equiv. 6.5 in.) - Grade SAE 841
- Material Sintered Bronze SAE 841
Product Compliance and Data
Additional Resources
Cross References
- Oilite BB-800-1
- Oilube BB-800-1
- BB8001
- A7B4-SSB07
- A7B4SSB07
- BNT-1025
- BNT1025
- A7B4MSSB022
