COH-02223-051-13-1P-CS - Datasheet
MBA
Category Information

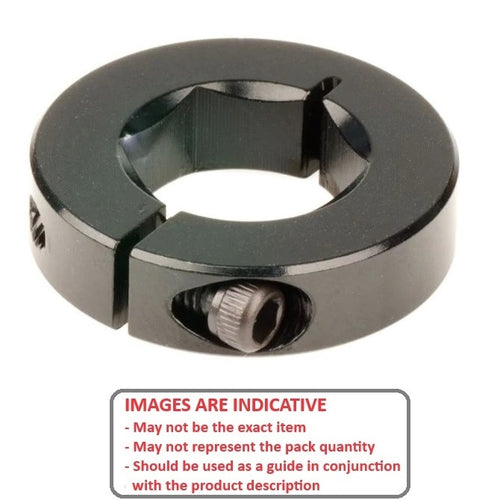

Collars - Hex Bore - One Piece - SteelSteel One Piece Hex Bore Collars. This is the main category in this series
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
Product Data

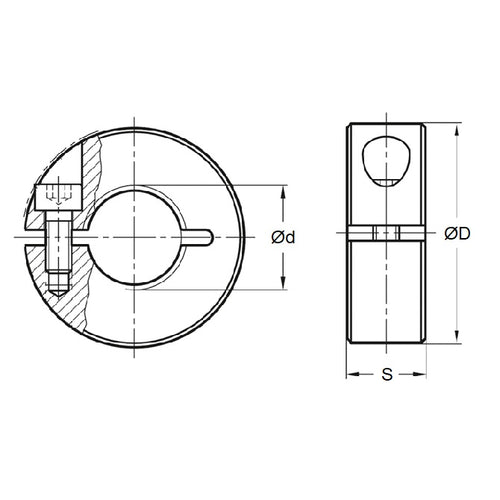

- Suitable Shaft Size (d)
:
22.225
mm
(Equiv. 0.875 in.) - Outside Diameter (D)
50.90
mm
(Equiv. 2.004 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Screw Size 1/4-28 UNF (6.35mm)
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- CTC-506
- CTC506
