COL-02223-038-14-CBO - Datasheet
MBA
Category Information

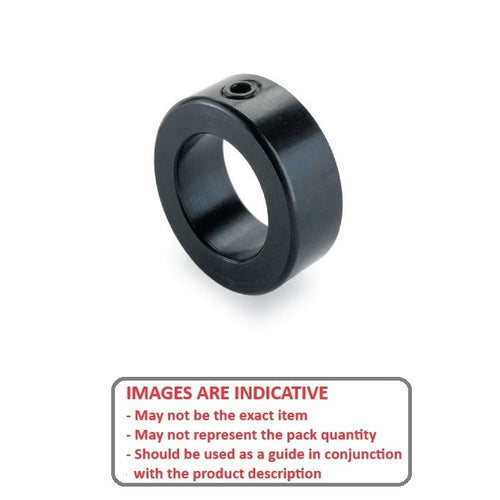

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
22.225
mm
(Equiv. 0.875 in.) - Outside Diameter (D)
38.10
mm
(Equiv. 1.5 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- 9414T17
- NoCor SC-0875-BO
- Small Parts SC-14
- SC0875BO
