W0222-F-035-0079-K-C - Datasheet
MBA
Category Information

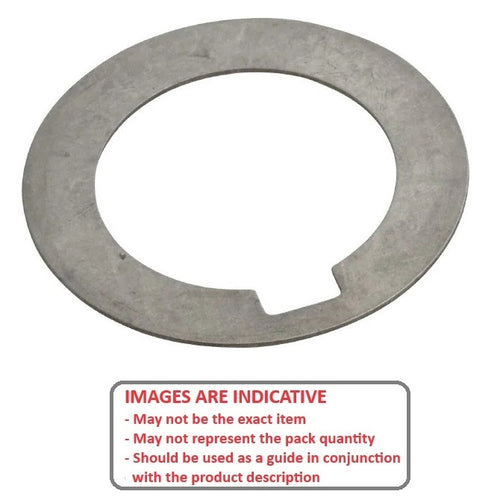

Spacers - ArborArbor Spacers. Flat arbor shim washers with keyway groove.
- Spacers with a notch or tab, fit snugly on keyed shafts to align and space gears, sprockets, and bearings.
- Often used to accurately space saw blades, cutters and other machinery.
Product Data

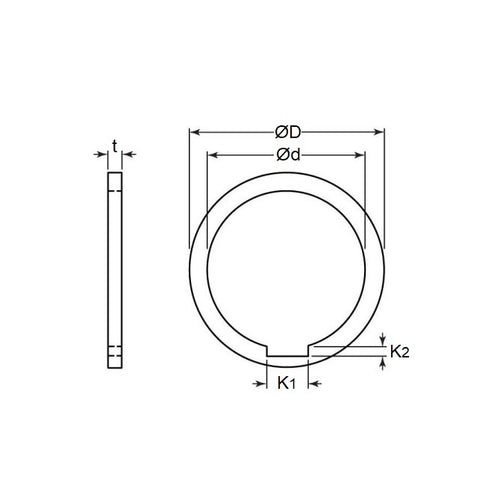

- ID (d)
:
22.225
mm
+ 0.279 / - 0.000
(Equiv. 0.875 in.) - OD (D)
34.925
mm
+/- 0.0508
(Equiv. 1.375 in.) - Thickness / Length (T)
0.787
mm
+ /- 0.025
(Equiv. 0.031 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- PB24195
- PB-24195
