2R-0222-0318-0300-KZO - Datasheet
ExaktKey
Category Information

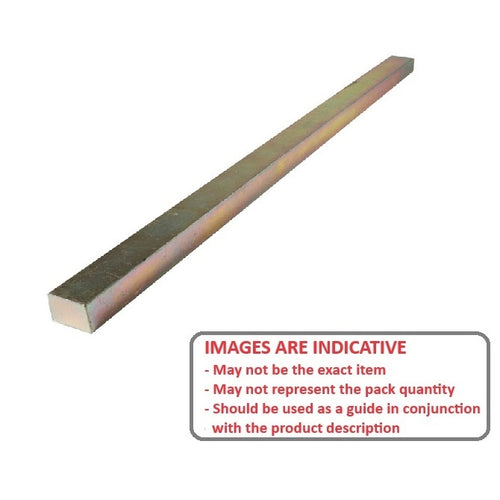

Keysteel Lengths - Rectangular - Zinc PlatedZinc Plated Rectangular Keysteel Lengths. Zinc plated carbon steel key steel. Rectangular steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
- Zinc plating may be silver or yellow in colour
Product Data
- Width (s1)
:
22.225
mm
+ 0.102 / - 0.00
(Equiv. 0.875 in.) - Height (s2)
31.750
mm
+ 0.076 / - 0.00
(Equiv. 1.25 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Finish Zinc Electroplate
- Tolerance Type Oversized
- Blue End Colour Code
- Material Carbon Steel 1045 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3608751250-12
- 98491A249
- MAK-A-KEY HMED78X1-14
- PRECISION KS7-8x1.1-4
- KS78x114
- HMED78X114
- 360875125012
