CP-222-222-41-064-R1-SC - Datasheet
MBA
Category Information

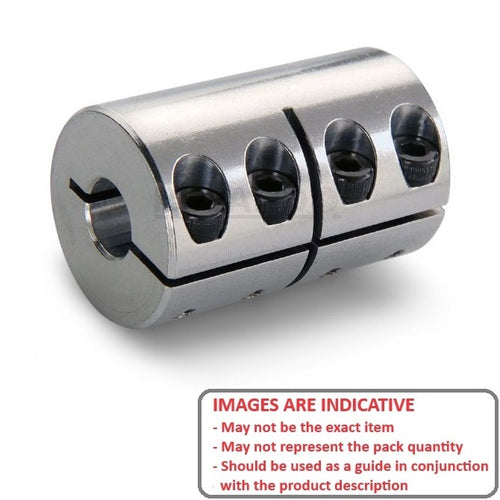

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.

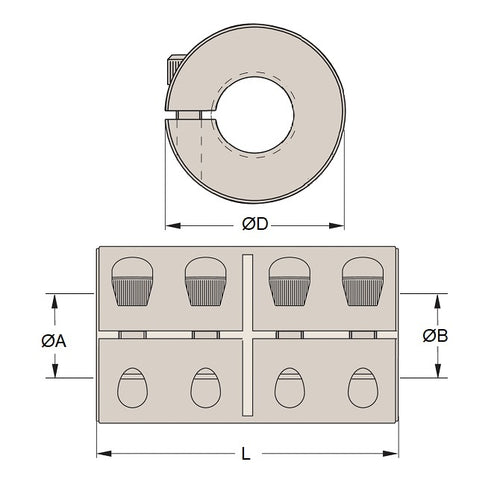

Product Data
- Bore (b1)
:
22.225
mm
(Equiv. 0.875 in.) - Bore (b2)
22.225
mm
(Equiv. 0.875 in.) - OD (D)
41.275
mm
(Equiv. 1.625 in.) - Length (L) 63.500 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 61005K366
- CC-312
- CC312
