BP0159-0222-0349-DP - Datasheet
MBA
Category Information

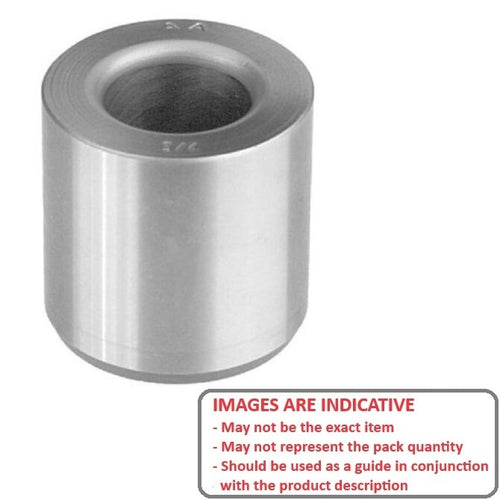

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

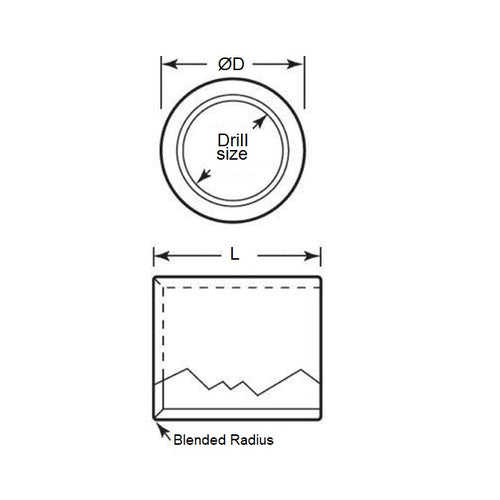

- Outside Diameter (OD)
:
22.225
mm
+ 0.003 / + 0.0152
(Equiv. 0.875 in.) - Drill Size
15.875
mm
+ 0.038 / + 0.046
(Equiv. 0.625 in.) - Length
34.925
mm
(Equiv. 1.375 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8491A531
- BP-40120
- BP40120
