TR-222-242-064-S3 - Datasheet
MBA
Category Information
Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

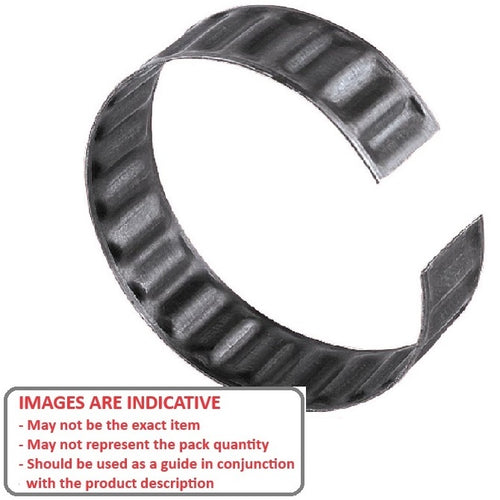

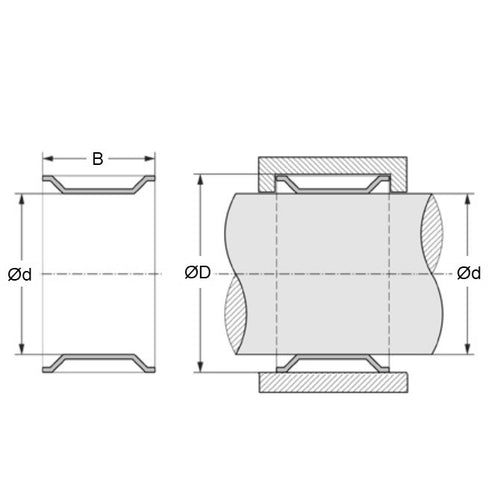

- Inner Part OD (d)
:
22.225 to 22.174
mm
(Equiv. 0.875 in.) - Housing ID (D)
24.206 to 24.130
mm
(Equiv. 0.953 in.) - Ring Width (B)
6.35
mm
(Equiv. 0.25 in.) - Outer Part ID (DT) mm 23.978 to 23.901 For Torque Transfer
- Max. Design Torque 11.30 N.m
- Style For bearing OD
- Max. Radial Load 2580 N
- Max. Design Thrust 1023 N
- To Suit OD of Bearing R6
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
