CP-222K-222K-41-057-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : 22.225 (Keyed) mm
    (Equiv. 0.875 in.)
  • Bore (b2) Keyed 22.225 mm
  • OD (D) 41.270 mm
    (Equiv. 1.625 in.)
  • Length (L) 57.150 mm
  • Features 4.763 Keyway
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K155
    • CC112
    • CC-112
    View full details

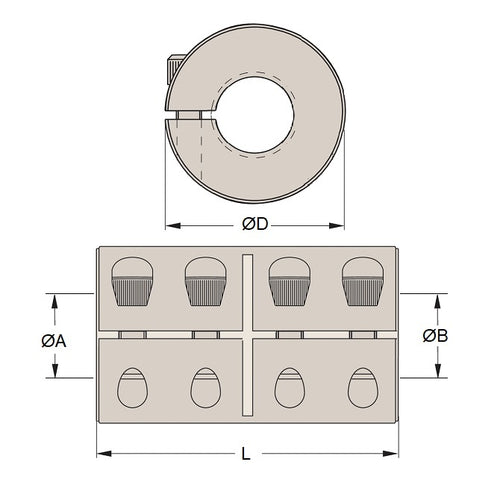

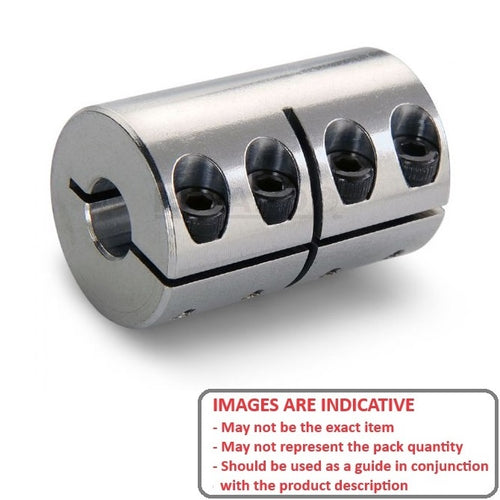

    CP-222K-222K-41-057-R1-SCDiagramCP-222K-222K-41-057-R1-SCImage
