CP-222K-222K-44-051-R-CG - Datasheet
MBA
Category Information

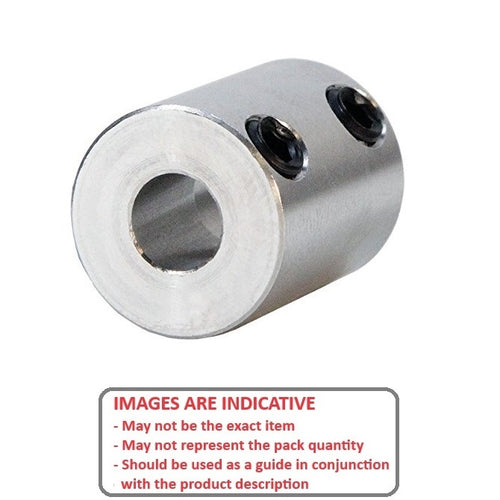

Couplings - Rigid - Set ScrewSet Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.
- An expanded range may be available on special order. Please enquire.
- Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
- Quality Class Commercial: Bore Tolerance +0.051 / -0.000.
Product Data
- Bore (b1)
:
22.225 (Keyed 4.76 Sq)
mm
(Equiv. 0.875 in.) - Bore (b2) Keyed 22.225 mm
- OD (D)
44.450
mm
(Equiv. 1.75 in.) - Length (L) 50.800 mm
- Bore Depth (B) Through Bore mm
- Quality Class Commercial

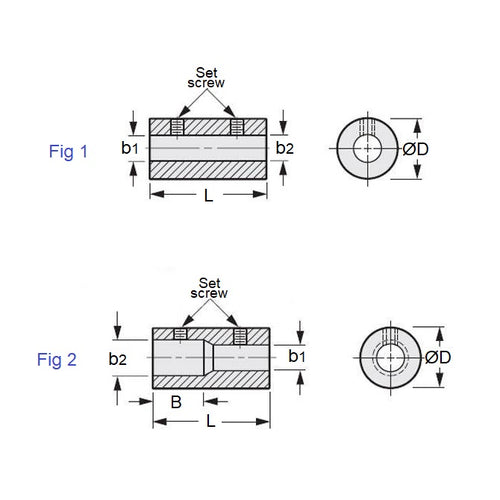

- Figure Fig. 1
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6412K44
- SC-875
- SC875
