HF4-875-B - Datasheet
MBA
Category Information

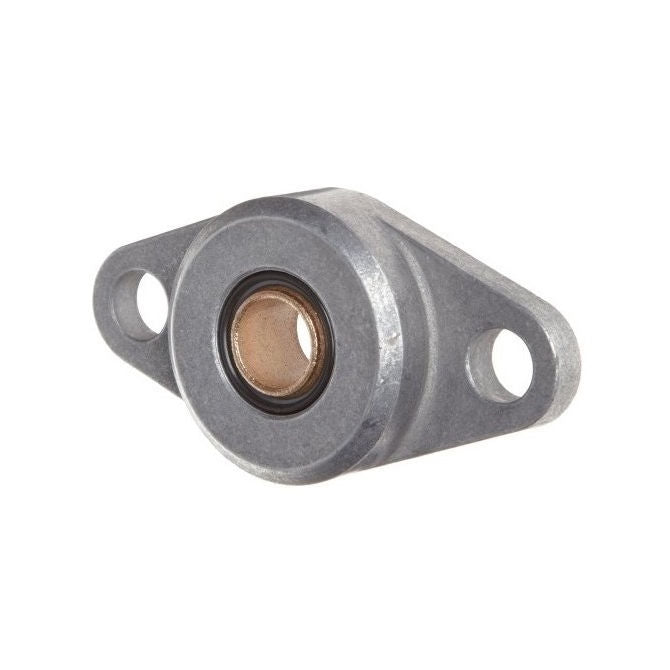

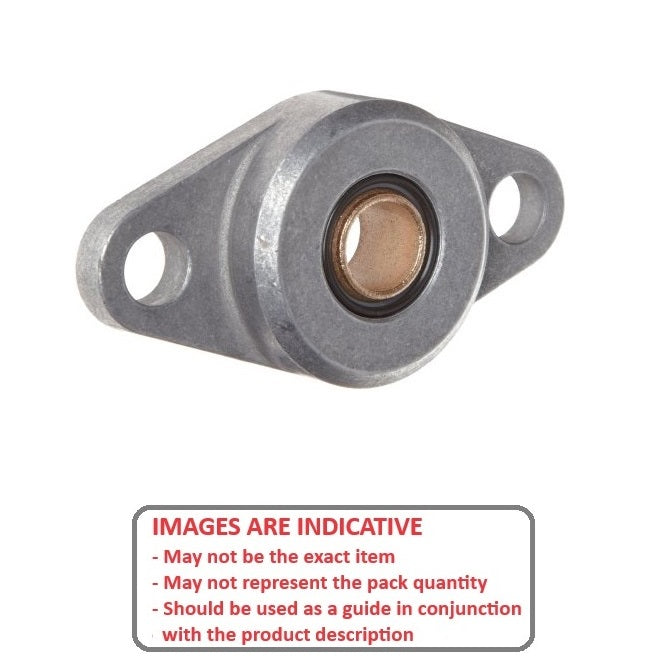

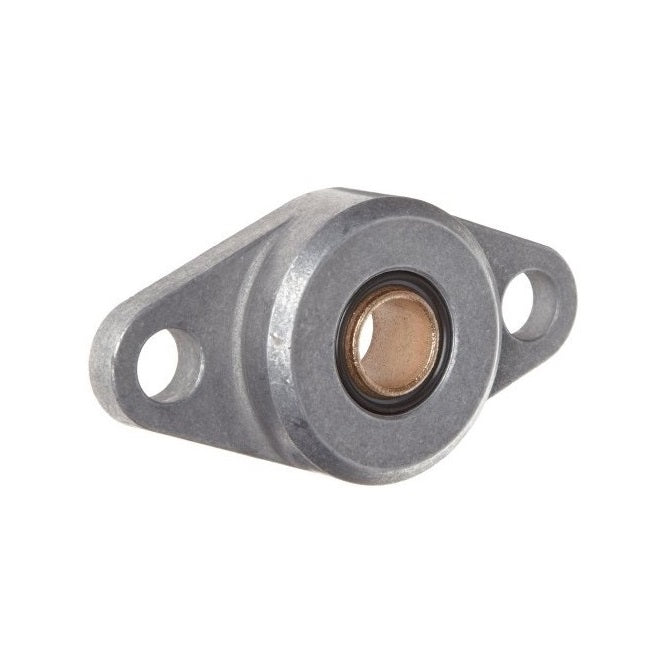

Housing Assembly - Flanged 2 Bolt - Self Aligning - BronzeBronze Self Aligning Flanged 2 Bolt Housing Assembly. Spyraflo robust light weight aluminium housing with self aligning bronze bearings.
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
- Sintered aluminium housing
- Corrosion Resistant
- Light weight
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

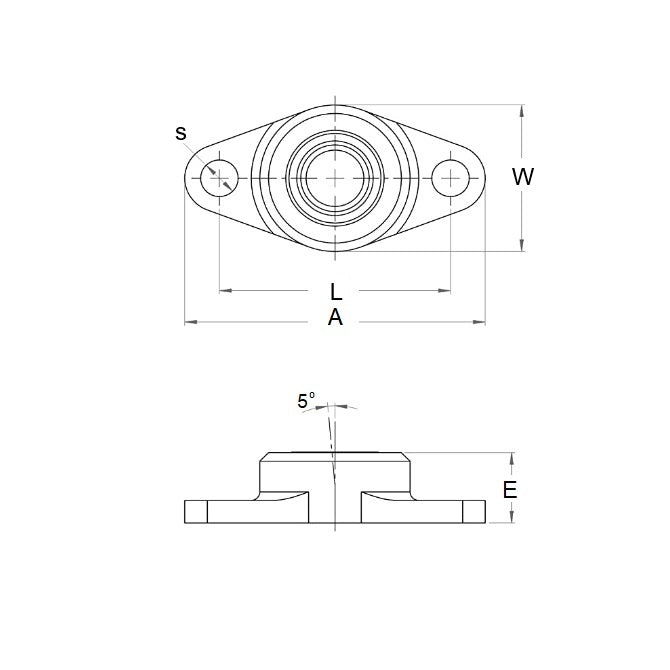

- Nominal Shaft Size
:
22.225
mm
(Equiv. 0.875 in.) - Width (W)
79.50
mm
(Equiv. 3.13 in.) - Overall Length (A)
101.60
mm
(Equiv. 4 in.) - Overall Height (E) 47.75 mm
- Min to Max Shaft Dia. 22.255 to 22.275 mm
- Max. Radial Dynamic Load 4003 N
- Bolt Hole Centres (L) 23.11 mm
- Max Speed 4850
- Material Bronze SAE 840 Sintered
