SLH-2223-3810-10160-H - Datasheet
MBA
Category Information

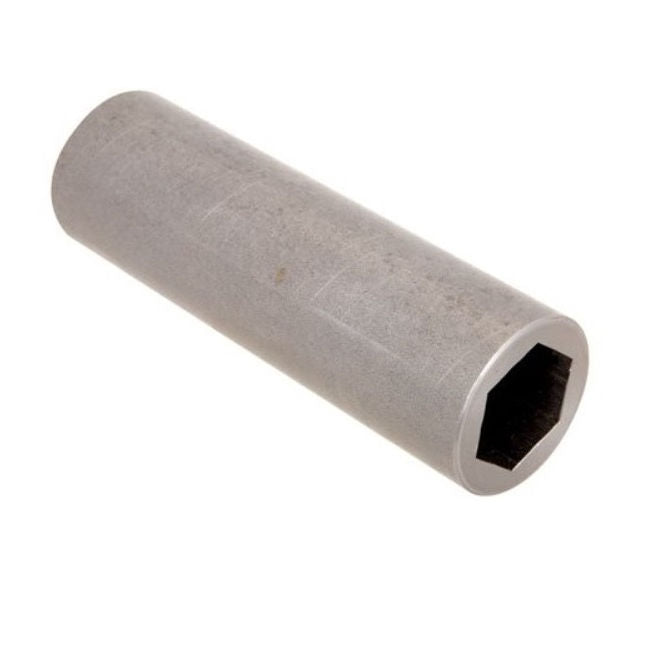

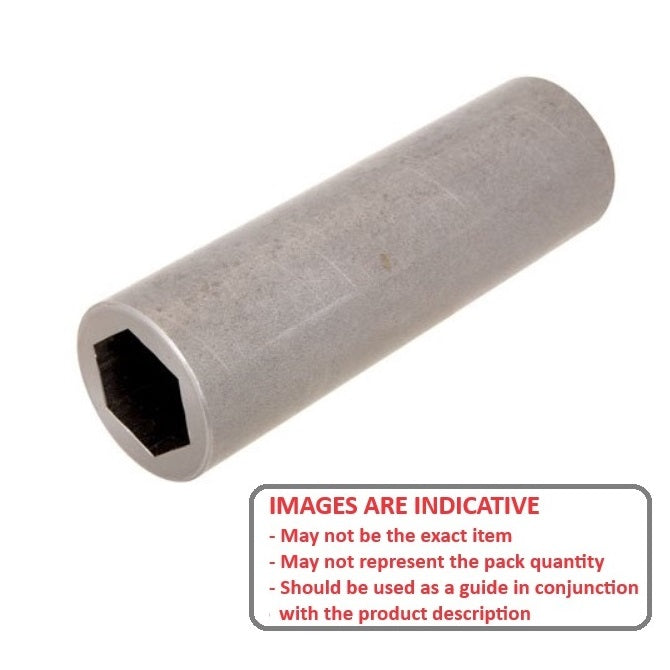

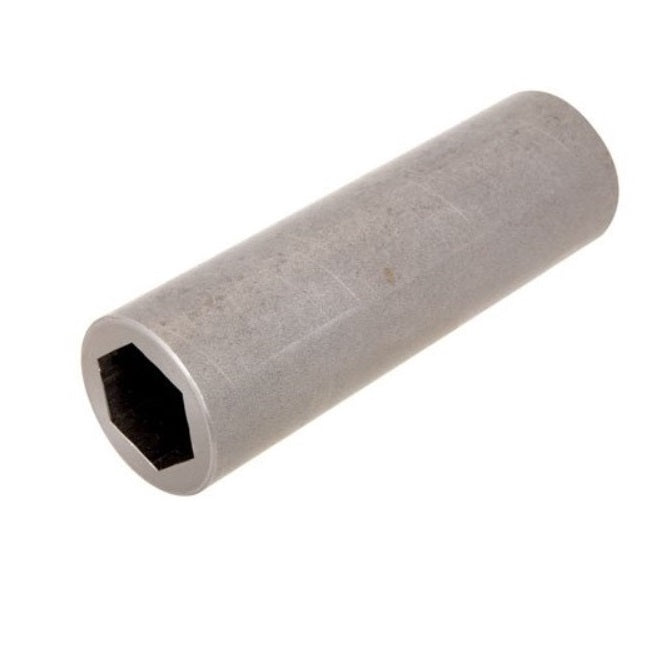

Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Pre hardened to Rockwell 23-30C. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Round OD with with a uniform hex hole broached from one end to the other.
Product Data

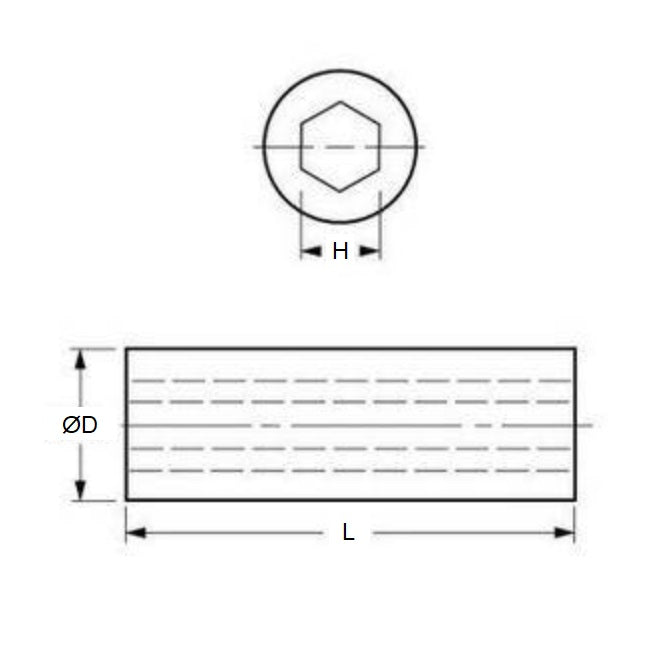

- Nominal Hex Size
:
22.225
mm
(Equiv. 0.875 in.) - Outside Diameter (OD)
38.100
mm
(Equiv. 1.5 in.) - Length (L)
101.600
mm
(Equiv. 4 in.) - Actual Hex Size (H) 22.301 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS-120
- HHS120
