CCF110RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

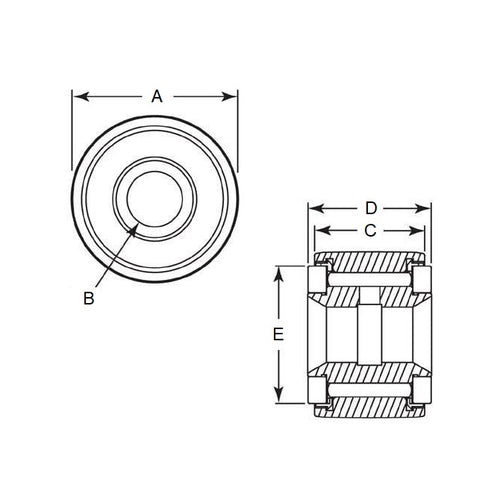

    • Diameter (A) : 22.225 mm
      (Equiv. 0.875 in.)
    • Overall Width (D) 14.288 mm
      (Equiv. 0.563 in.)
    • Bore (B) 6.350 mm
      (Equiv. 0.25 in.)
    • Width (C) 12.700 mm
    • E 15.875 mm
    • Dynamic Load Rating 752.963 kg
    • Static Load Rating 1873.336 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 6831K42
      • CCF110
      • CCF-110
      View full details
      CCF110RSDiagramCCF110RSImage
