BF0159-0222-0318-DP - Datasheet
MBA
Category Information

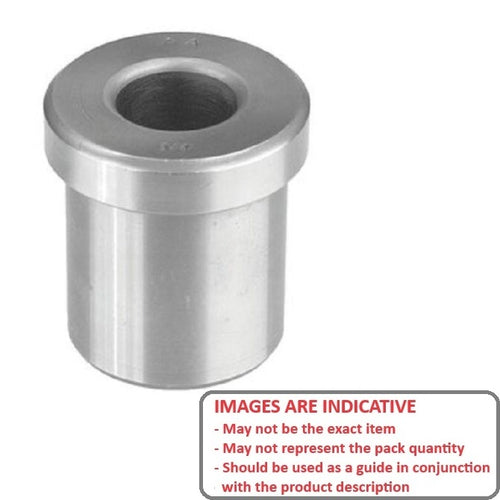

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

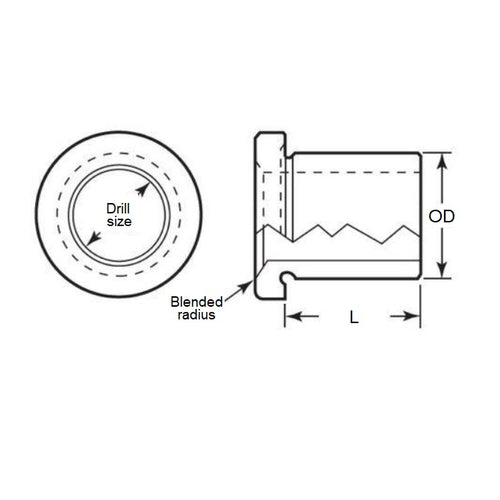

- Outside Diameter (OD)
:
22.223
mm
+ 0.0381 / + 0.0457
(Equiv. 0.875 in.) - Drill Size
15.875
mm
+ 0.0025 / + 0.0127
(Equiv. 0.625 in.) - Length
31.750
mm
(Equiv. 1.25 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A303
- BHT-34040
- BHT34040
