MAG-H-22-029-AN - Datasheet

MBA

Category Information

Magnets - Pocket Anico

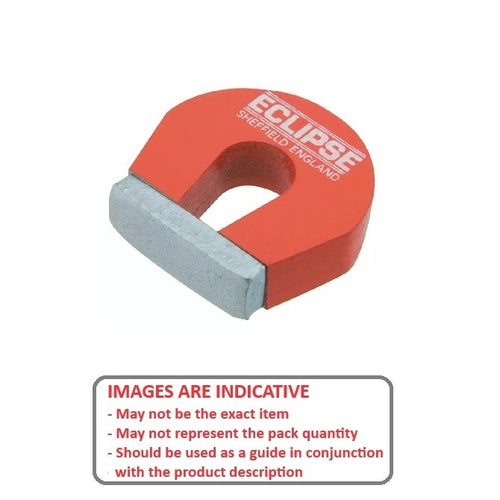

Pocket Anico Magnets. Supplied with keeper

  • Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
  • Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
  • While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.

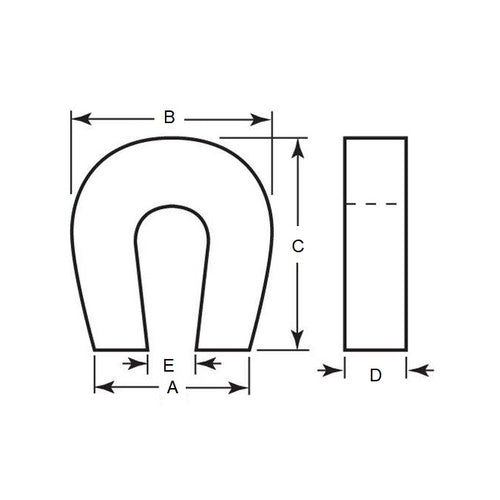

Product Data

  • Length (A) : 22.22 mm
    (Equiv. 0.875 in.)
  • Top Length (B) 28.58 mm
    (Equiv. 1.125 in.)
  • Height (C) 25.4 mm
    (Equiv. 1 in.)
  • D 7.98 mm
  • E 6.35 mm
  • Pull 2.2 kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • E802
