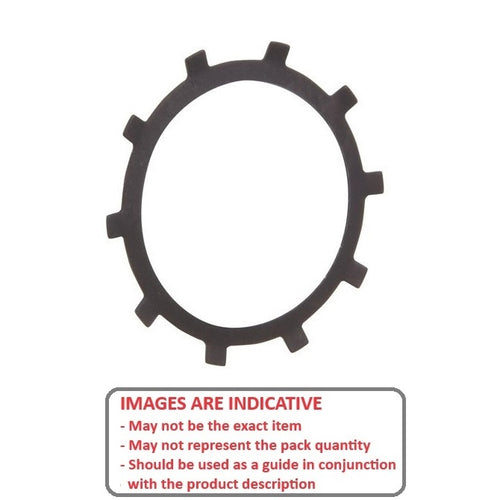

RPI-221-223-C - Datasheet

MBA

Product Data

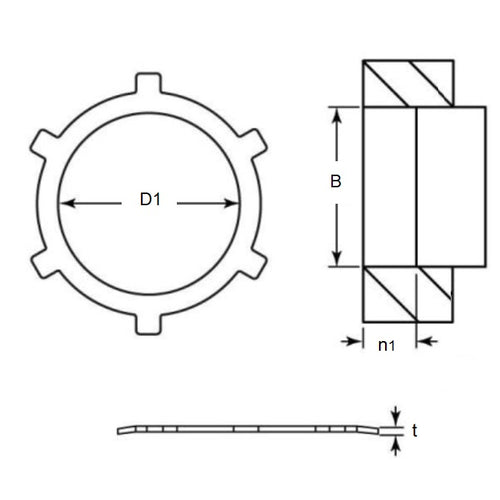

• Housing Bore (B) Min : 22.17 mm
  (Equiv. 0.873 in.)
• Housing Bore (B) Max 22.28 mm
  (Equiv. 0.877 in.)
• Inside Clearance (D1) 15.88 mm _{+ / - 0.26}
  (Equiv. 0.625 in.)
• Thickness (t) 0.38 mm +/- 0.06
• Recommended Depth (n1) 1.52 mm
• Thrust Load 968 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A131
• Truarc C27208
• Small Parts RSI-14
• NoCor TI-087
• N13050087APP
• N1305-0087APP
• N1305-0087-APP
• TI087
• RSI14
