Miniature Bearings Australia
NR-0210-060-100-B-ZZ - Datasheet
MBA
Category Information

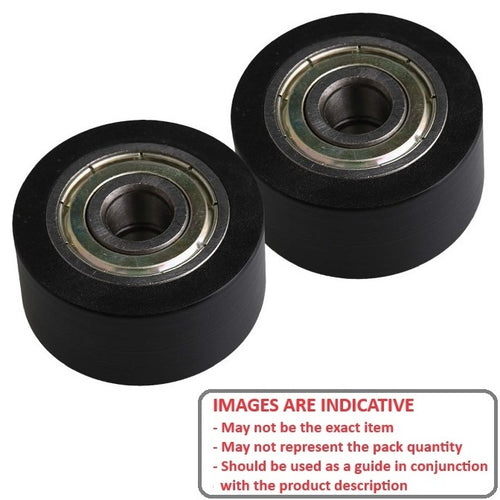

Rollers - Idler with Bearing - Nylon CoveredNylon Covered Idler with Bearing Rollers. Nylon tyred rollers for heavy duty applications
- An expanded range may be available on special order. Please enquire.
- Nylon tyre (tire) covering a precision deep groove radial ball bearings

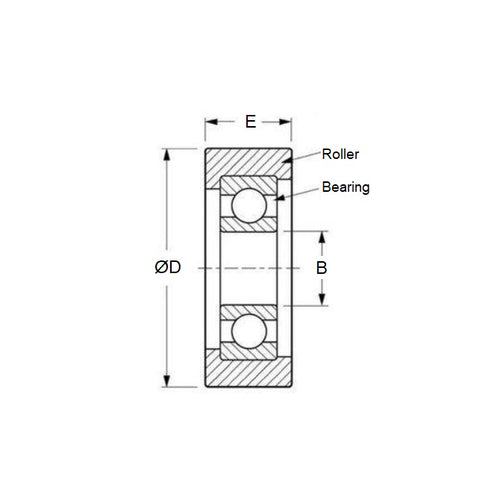

Product Data
- Outside Diameter (A)
:
21.00
mm
+/- 1.0
(Equiv. 0.827 in.) - Bore (d)
6.00
mm
(Equiv. 0.236 in.) - Roller Width (B)
10.00
mm
(Equiv. 0.394 in.) - Bearing Width (W) 5.00 mm
- Nylon Colour Black
- Material Nylon Covered Chrome Steel
