BV16-02159-5VX850 - Datasheet

MBA

Category Information

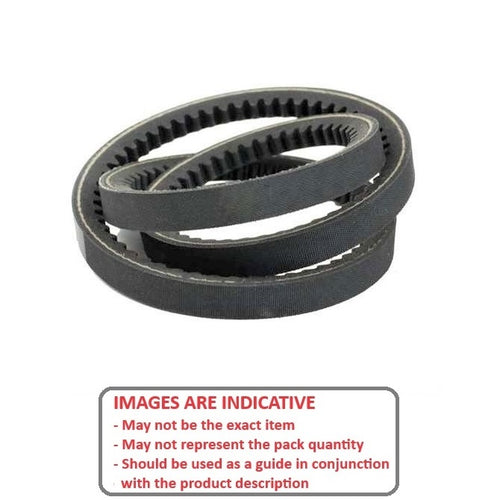

Belts - Wedge - 15.9 x 13.5mm Notched 5VX

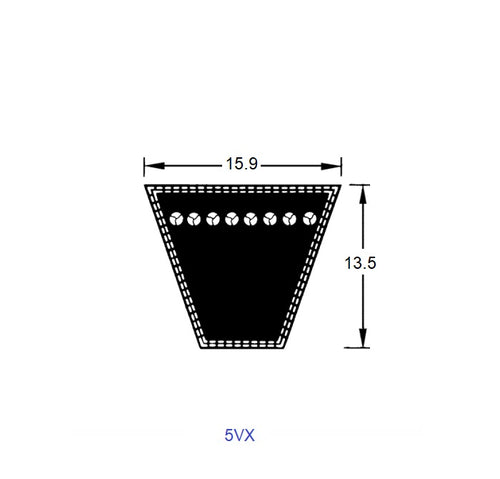

15.9 x 13.5mm Notched 5VX Wedge Belts. 15.9mm Top Width x 13.5mm Height.

  • Sizes are nominal and may vary slightly.

Product Data

  • Pitch Length : 2159 mm
    (Equiv. 85 in.)
  • Type Standard - Wedge Belt
  • Re-Inforcement Polyester
  • Material Natural Rubber - Fabric Jacket
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTQ-5VX850
    • BTQ5VX850
    View full details
    BV16-02159-5VX850DiagramBV16-02159-5VX850Image
