MSM-159C-102-CCCRP - Datasheet
MBA
Category Information

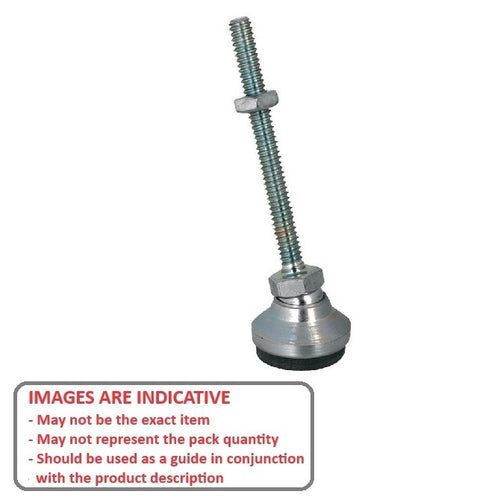

Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber PaddedRubber Padded Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
63.5
mm
(Equiv. 2.5 in.) - Foot Height (C)
34.9
mm
(Equiv. 1.374 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 11.10 mm
- Overall Height 136.5 mm
- Load Rating 2100 Kg
- Finish Clear Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 22.225 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K374
- MSM2100159CLCCR
- TES30
- TES-30
