G008B-021-D64-032-032-AL-G - Datasheet
MBA
Category Information

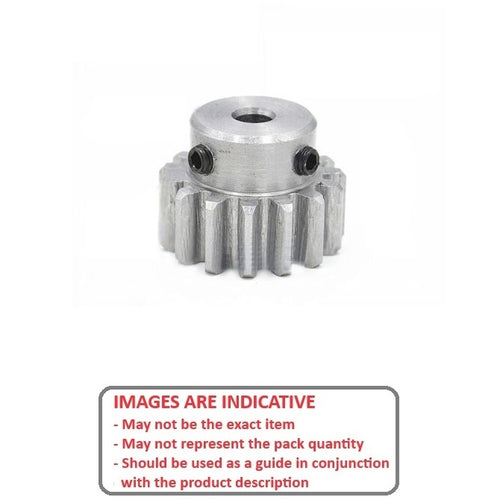

Gears - Spur - Hubbed - 64DP Aluminium64DP Aluminium Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.3969 (1/64 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 64 teeth
- 64 Diametrical Pitch. Approx 1.25mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 21
- Pitch Circle Diameter (PD)
8.33
mm
(Equiv. 0.328 in.) - Bore (d)
3.175
mm
(Equiv. 0.125 in.) - Outside Diameter (OD) 9.126 mm
- Face Width (FW) 3.18 mm
- Type Hubbed
- Hub Diameter (D1) 7.93 mm
- Hub Projection (HL) 4.76 mm
- Locking Method Set Screw
- Quality AGMA Q10
- Material Aluminium Alloy 2024
Product Compliance and Data
Additional Resources
Cross References
- G008B21D64032032ALG
