CCE-02143-CZY - Datasheet
MBA
Category Information

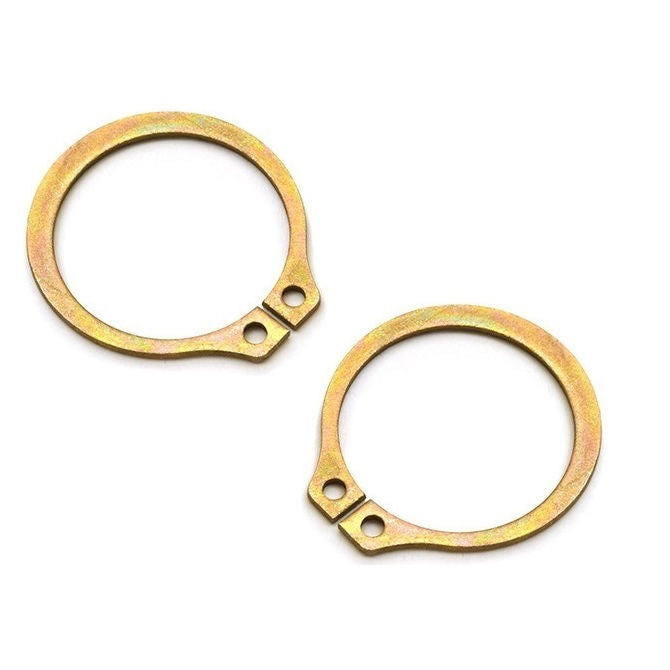

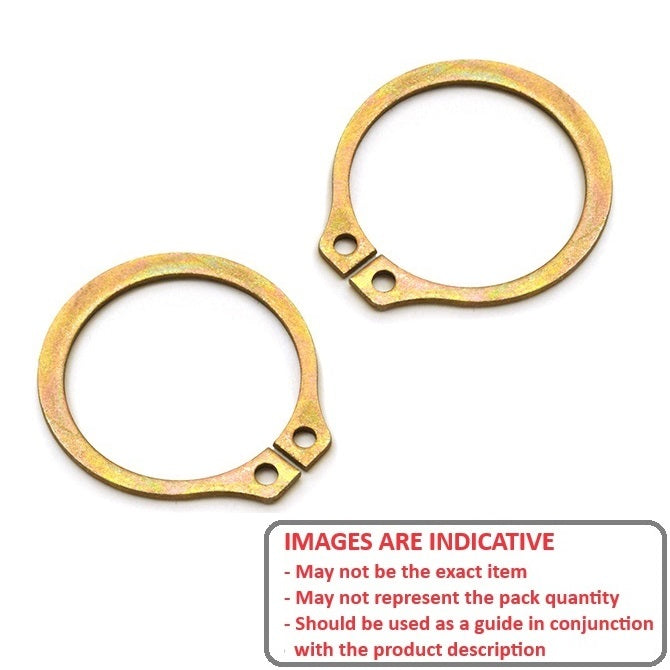

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
21.43
mm
(Equiv. 0.844 in.) - Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.) - Groove Dia. (Dg)
20.10
mm
+/- 0.051
(Equiv. 0.791 in.) - Approx. Loose Circlip ID (A) 19.80 mm
- Groove Width (W) 1.20 mm
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A208
- NoCor SH-084-ZD
- SH084ZD
- N14000084AZD
- N1400-0084AZD
