P-020G-020-090FF-AL-G-048 - Datasheet
MBA
Category Information

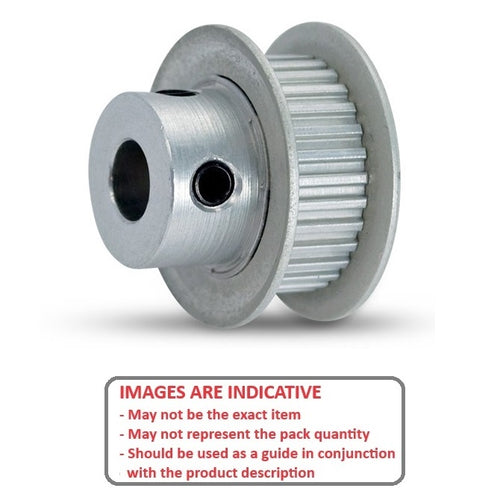

Pulleys - Metric Timing - 2.000mm Pitch - GT - 9mm Wide Through Bore9mm Wide Through Bore GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Set Screw Locking
Product Data
- Number of Teeth : 20
- Max Belt Width
9.00
mm
(Equiv. 0.354 in.) - Bore (d)
4.763
mm
(Equiv. 0.188 in.) - Bore Type Finished
- Locking Type Set Screw

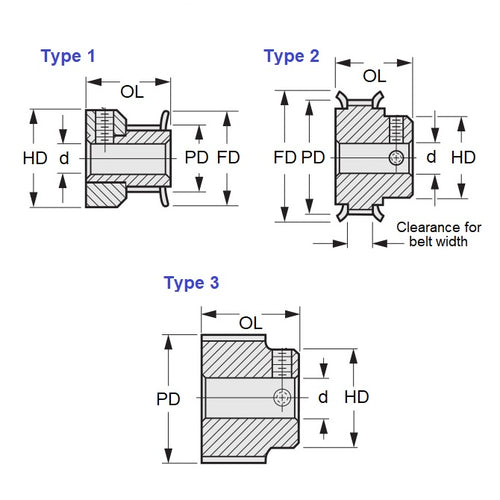

- Type 2
- Pitch Dia. (PD) 12.73 mm
- Flange Diameter (FD) 17.4 mm
- Overall Length 19.5 mm
- Hub Diameter (HD) 9.3
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 20-2P09-6FA2
- 202P096FA2
- A6A51-020DF0906
- A6A51020DF0906
