P-025T-020-090A - Datasheet
MBA
Category Information

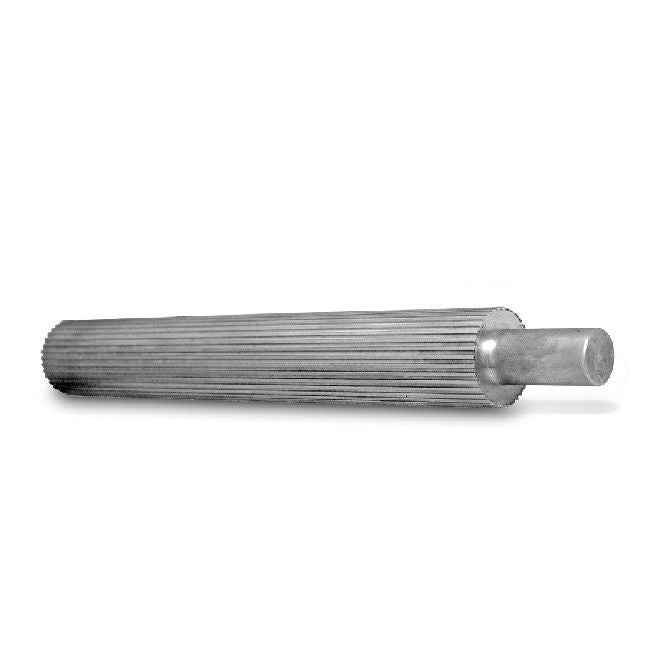

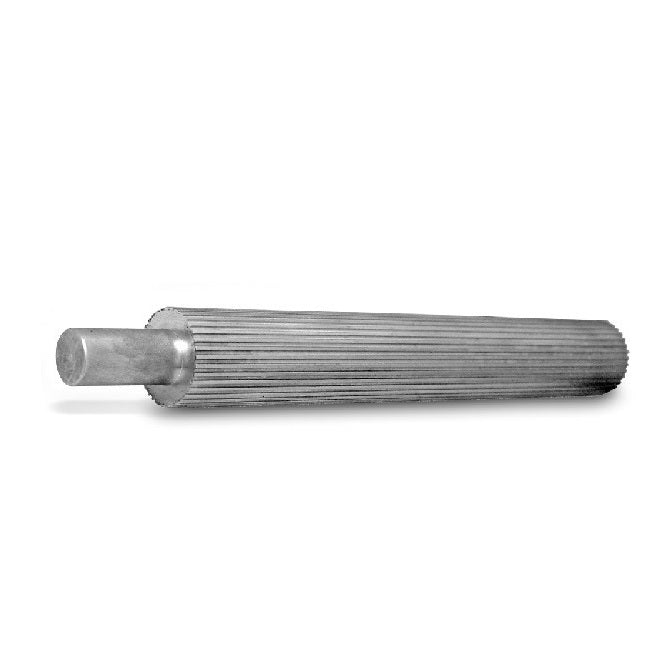

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 20
- Min. Usable Length (L)
90.0
mm
(Equiv. 3.543 in.) - Pitch Diameter (PD)
16.00
mm
(Equiv. 0.63 in.) - Outside Diameter (OD) 15.40 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 20.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 20T2.5-PS90A
- 20T25PS90A
- A6A31M020T09
