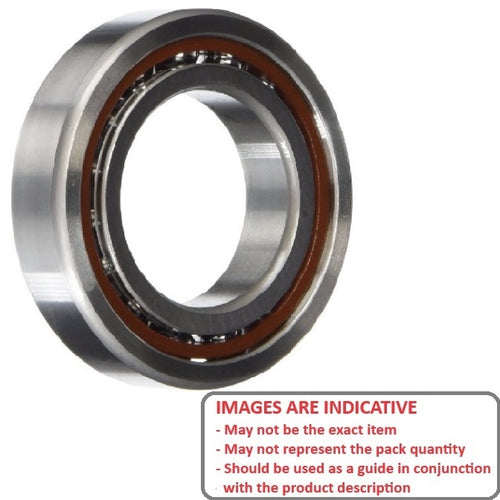

6904-CSN-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data
High speed polyamide cage. Ceramic balls.
- ID (d) : 20.000 mm
- O.D. (D) 37.000 mm
- Width (B) 9.000 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6904
- Limiting Speed 28880
- Cage Type Polyamide
- Static Load Rating KGf 285.8
- Dynamic Load Rating KGf 494.8
- Radii 0.30 mm
- Inner Shoulder (UI) 23.65mm
- Outer Shoulder (UO) 33.50 mm
- Number of Balls 11
- Clearance ECO (5 to 36)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- ASP® - 108 - Rear Bearing 20-37-9mm
- ASP® - 108 All Models - Bearing 20-37-9mm
- ASP® - 91 Old - Rear Bearing 20-37-9mm
- Jett® - Fan Jet - 35 - Bearing 20-37-9mm
- Jett® - Fan Jet - 50 - Bearing 20-37-9mm
- Jett® - Fire - 46 - Bearing 20-37-9mm
- Jett® - Fire - 50 - Bearing 20-37-9mm
- Jett® - Fire - 65 - Bearing 20-37-9mm
- Jett® - Fire - 76 - Bearing 20-37-9mm
- Jett® - Fire - 90 - Bearing 20-37-9mm
- Jett® - Heli - 46 - Bearing 20-37-9mm
- Jett® - Heli - 95 - Bearing 20-37-9mm
- Jett® - Sport - 105 - Bearing 20-37-9mm
- Jett® - Sport - 46 - Bearing 20-37-9mm
- Jett® - Sport - 50 - Bearing 20-37-9mm
- Jett® - Sport - 65 - Bearing 20-37-9mm
- Jett® - Sport - 76 - Bearing 20-37-9mm
- Jett® - Sport - 90 - Bearing 20-37-9mm
- Magnum Power® - XL - 46 - Bearing 20-37-9mm
- Magnum Power® - XL - 61 - Bearing 20-37-9mm
- Magnum Power® - XL 4C - 120 - Bearing 20-37-9mm
- Magnum® - 108 - 2 Stroke - Rear Bearing 20-37-9mm
- Magnum® - 91 - 2 Stroke - Rear Bearing 20-37-9mm
- MDS - FS Pro - 46 - Bearing 20-37-9mm
- Moki® - 1.5 All Models - Bearing 20-37-9mm
- Moki® - 51 All Models - Bearing 20-37-9mm
- MVVS - 1.6 Gas New - 61 - Bearing 20-37-9mm
- MVVS - Glow Engine - 40 - Bearing 20-37-9mm
- OS Engines® - 108 FSR - 2 Stroke - Rear Bearing 20-37-9mm
- OS Engines® - F320 4 Cylinder RC - 4 Stroke - Rear Bearing 20-37-9mm
- OS Engines® - F4 4-C - 320 - Bearing 20-37-9mm
- OS Engines® - F4 4CYL - 32 - Bearing 20-37-9mm
- OS Engines® - FF240 4 Cylinder RC - 4 Stroke - Rear Bearing 20-37-9mm
- OS Engines® - FSR RC W-Muffler - 40 - Bearing 20-37-9mm
- OS Engines® - FSR Ring RN - 50 - Bearing 20-37-9mm
- OS Engines® - FT 12 Twin RC 4C - 45 - Bearing 20-37-9mm
- OS Engines® - FT Twin 120 II - 45 - Bearing 20-37-9mm
- OS Engines® - FT Twin RC 4C - 12 - Bearing 20-37-9mm
- OS Engines® - FT Twin RC 4C - 120 - Bearing 20-37-9mm
- OS Engines® - FT12011 Twin RC - 4 Stroke - Rear Bearing 20-37-9mm
- OS Engines® - FT160 Twin RC - 4 Stroke - Rear Bearing 20-37-9mm
- OS Engines® - Old FF 4 CYL - 61 - Bearing 20-37-9mm
- OS Engines® - Old FT Twin 4C - 240 - Bearing 20-37-9mm
- OS Engines® - Old FT Twin 4C - 25 - Bearing 20-37-9mm
- OS Engines® - RX - 21 - Bearing 20-37-9mm
- OS Engines® - RX140 - Rear Bearing 20-37-9mm
- OS Engines® - RX-2 Cycle - 15 - Bearing 20-37-9mm
- OS Engines® - RX-EFI - 140 - Bearing 20-37-9mm
- OS Engines® - RX-FI - 21 - Bearing 20-37-9mm
- Rossi® - 65 All Models - Bearing 20-37-9mm
- Thunder Tiger® - 120 Pro - 2 Stroke - Rear Bearing 20-37-9mm
- Thunder Tiger® - Pro - 21 - Bearing 20-37-9mm
- Thunder Tiger® - RP - 50 - Bearing 20-37-9mm
- Webra® - Speed - 61 - Bearing 20-37-9mm
Cross References
- BOCA® MR6904C-TH9-C3
- MR6904CTH9C3
- 6904 Basic Size Ref
