W0200-LE-032-014-CZ - Datasheet
MBA
Category Information

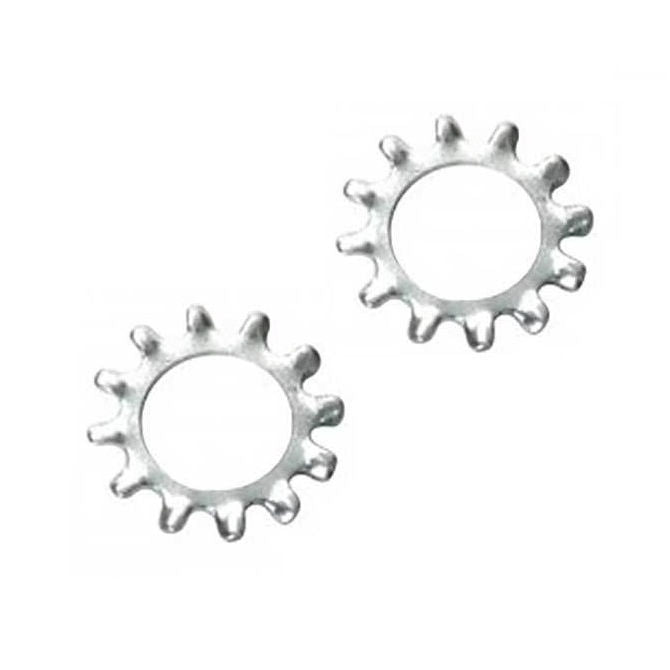

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
- Nominal Inside Diameter
:
20.00
mm
(Equiv. 0.787 in.) - Outside Diameter
32
mm
(Equiv. 1.26 in.) - Material Thickness (T)
1.40
mm
(Equiv. 0.055 in.) - Nominal Screw Size M20
- Actual ID (Ref) 20.5 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000833
- 97985A650
- WASCA WLESZNP20
