Springs - Die - Metric - Medium Duty

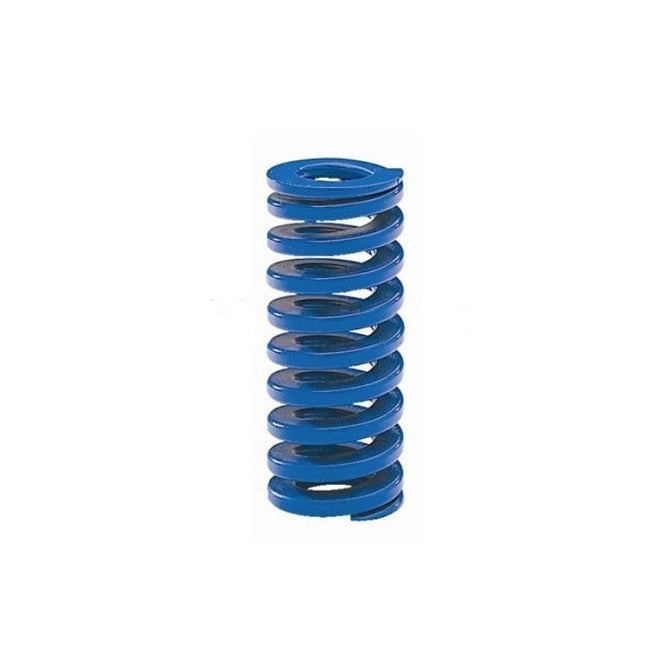

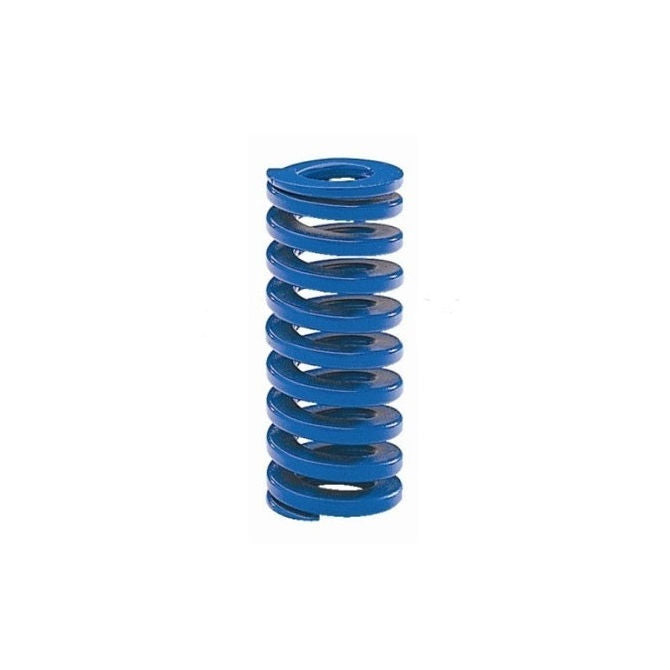

Medium Duty Metric Die Springs. Colour coded blue. High tensile strength chromium alloy steel.

  • Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
  • Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
  • Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
  • Heat Resistance: Up to +230 Deg C (Loss of load occurs above +120 Deg C).
  • Spring Ends: Squared and ground.
  • For compressed length, Subtract Deflection from Free Length.

Product Data

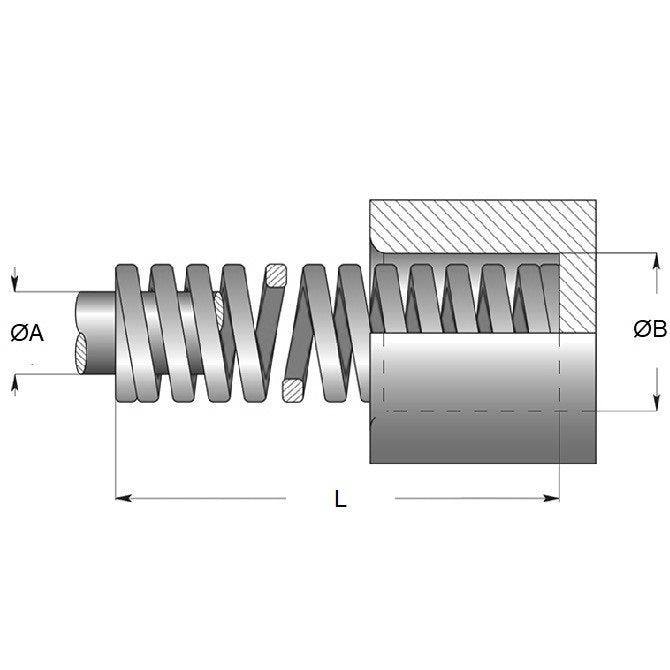

  • Hole Diameter (B) : 20.00 mm
    (Equiv. 0.787 in.)
  • Rod Diameter (A) 10.00 mm
    (Equiv. 0.394 in.)
  • Length (L) 44.00 mm
    (Equiv. 1.732 in.)
  • Optimum Deflection 25 Percent
  • Optimum Deflection 11.0 mm
  • Load at Optimal 522.5 N
  • Maximum Deflection 37 Percent
  • Maximum Deflection 16.3 mm
  • Load at Maximum 774.3 N
  • Spring Rate 47.5 N/mm
  • Colour Code Blue
  • Material Carbon Spring Steel
Country of Origin: US
