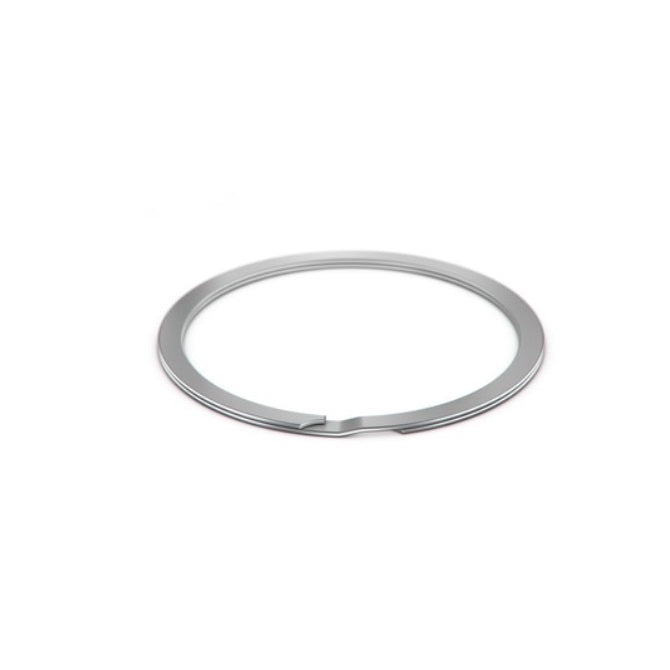

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Product Data

  • Housing Bore (B) : 209.55 mm
  • Clip Thickness (T) 2.19 mm +/- 0.11
    (Equiv. 0.086 in.)
  • Groove Dia. (Dg) 214.94 mm
  • Approx. Loose Circlip OD (Dr) 218.77 mm + 1.65 / - 0.00
  • Radial Wall (S) Approx. 9.53 mm +/- 0.16
  • Groove Width (W) 2.47 mm +/- 0.20
  • Approx. Loose Clip ID 199.71 +/- 0.08
  • Groove Depth (d) 2.69
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring® AI-825
  • Huyett® RR-825
  • Smalley® WH-825
  • Spirolox® WH-825
  • WH825
  • AI825
View full details

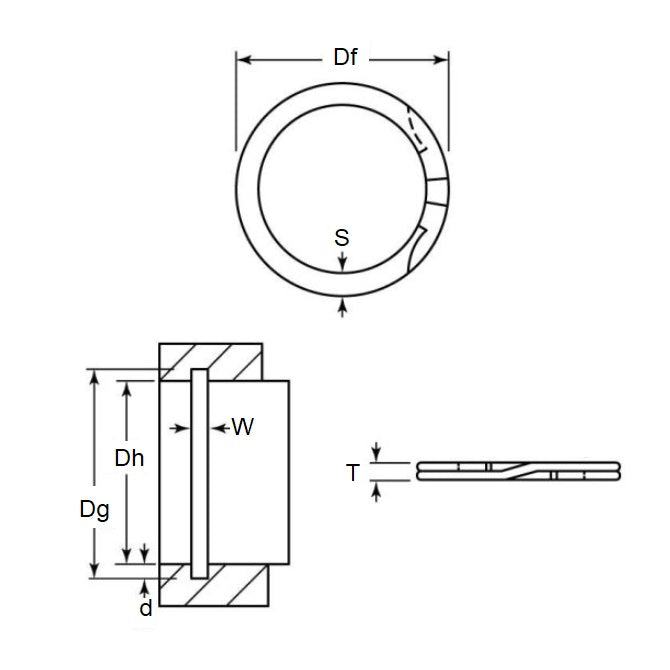

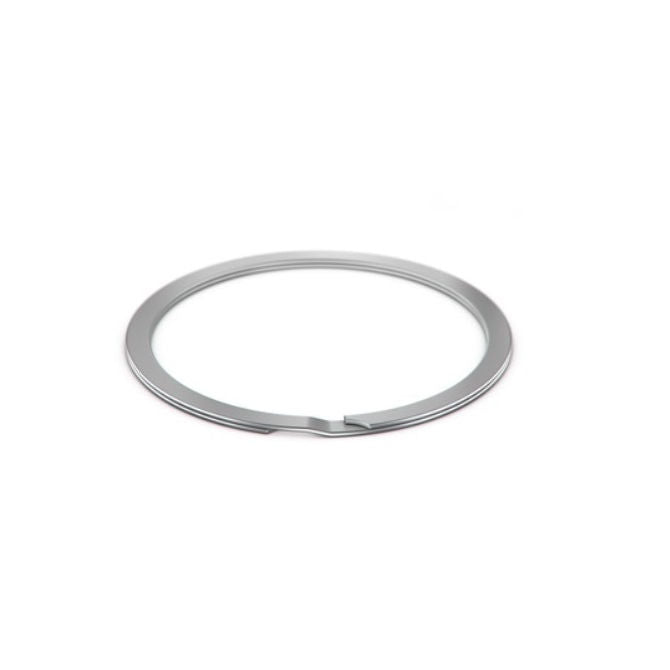

RR-825DiagramRR-825Image
