B-MXL-0205-0064-PPO - Datasheet
MBA
Category Information

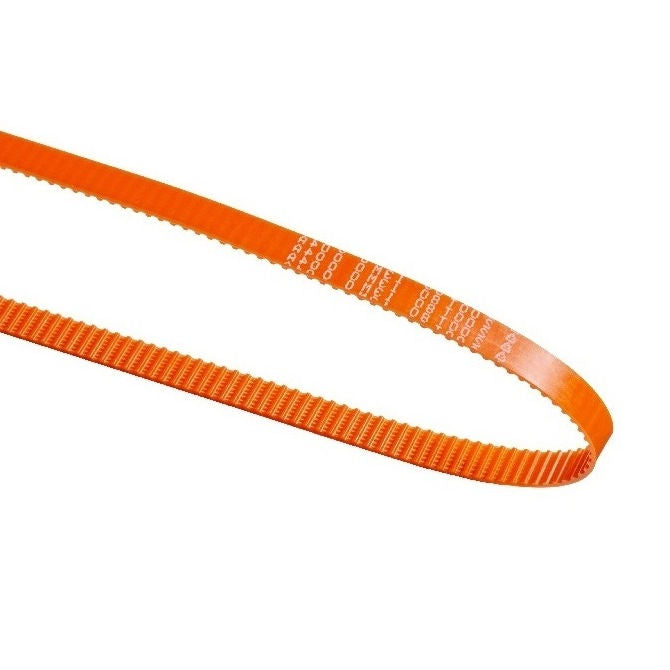

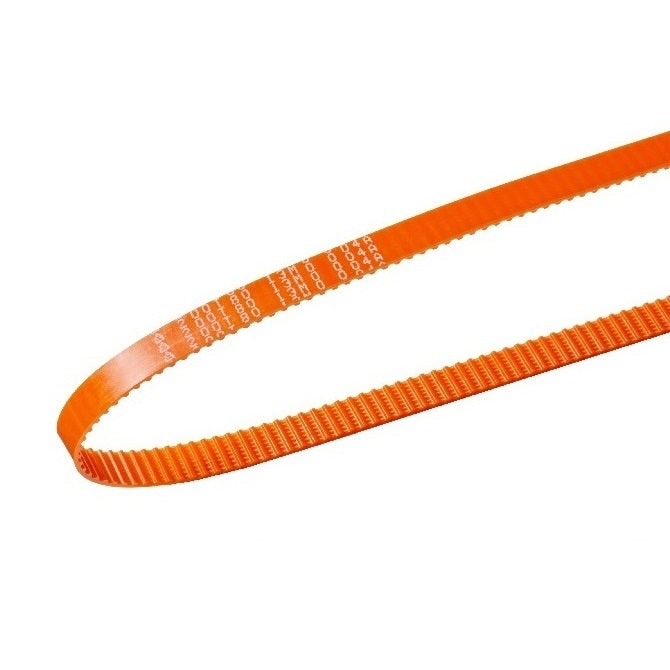

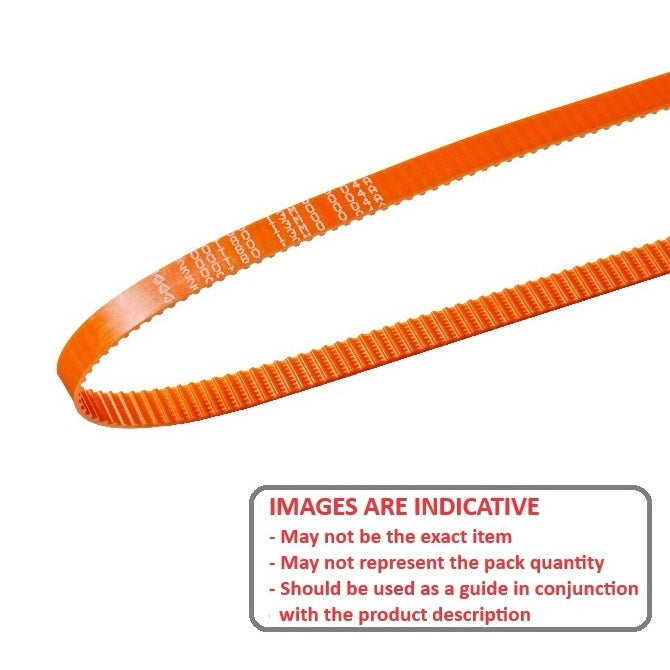

Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Single SidedSingle Sided 6.4mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 6.35mm (1/4 inch) widths +/- 0.2mm
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 0.76mm
- Tooth Height (H) - 0.46mm
- Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
- Pitch (P) - 2.032mm (0.08 inch)
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 205
- Length
416.56
mm
(Equiv. 16.4 in.) - Width
6.4
mm
(Equiv. 0.252 in.) - Reinforcement Polyester
- Appearance Orange
- Breaking Strength 711 N
- Min Temperature (C) -18 Deg C
- Max Temperature (C) 66 Deg C
- Tooth Angle (A) 60 °
- Material Polyurethane with Polyester Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates BMXL02050060PP
- A 6G16M205060
- A6G16205025
- A6G16-205025
- A6G16M205060
