MSF-160M-CGCRP - Datasheet
MBA
Category Information

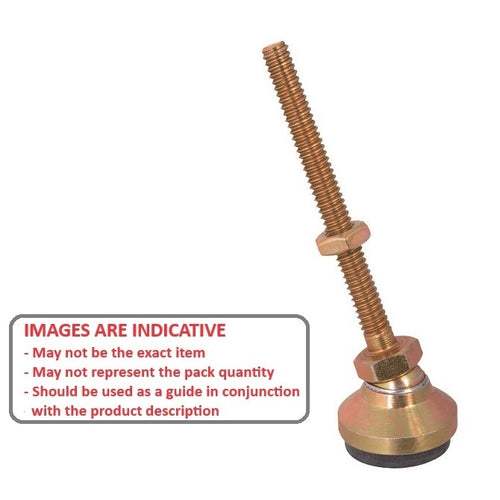

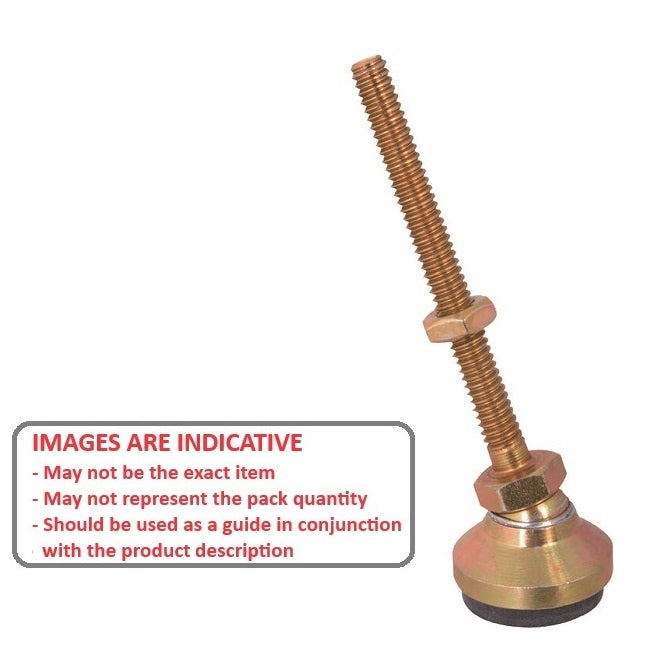

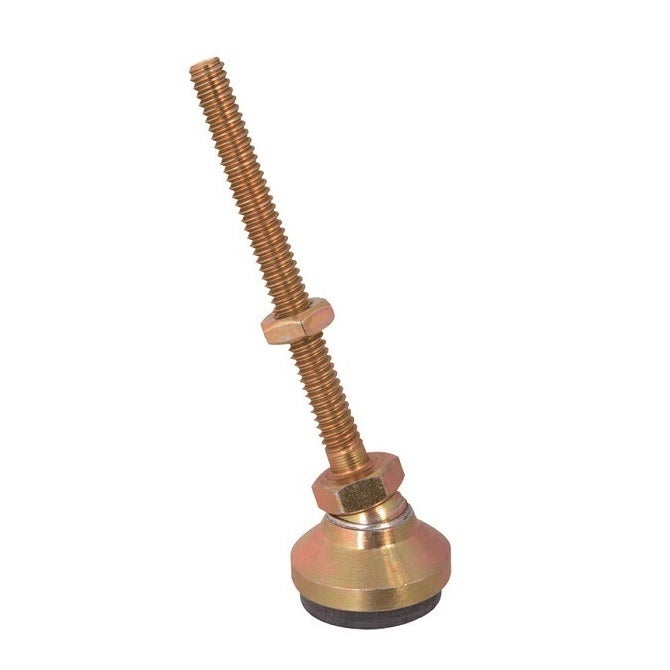

Mounts - Levelling Socket - Swivel - Gold Chromate - Rubber PaddedRubber Padded Gold Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

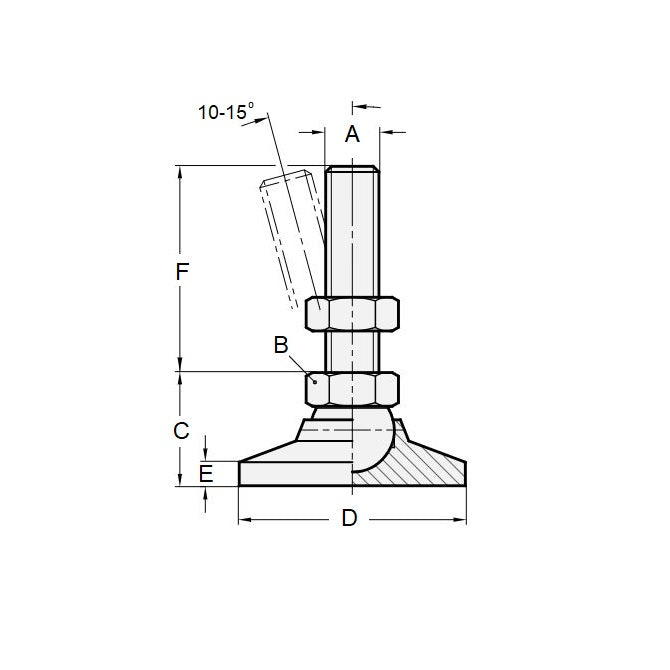

- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
35.0
mm
(Equiv. 1.378 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 11.00 mm
- Load Rating 2040 Kg
- Finish Gold Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 24.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF2040M16GR
- MLP35
- MLP-35
