MSM-160M-051-CGCRP - Datasheet
MBA
Category Information

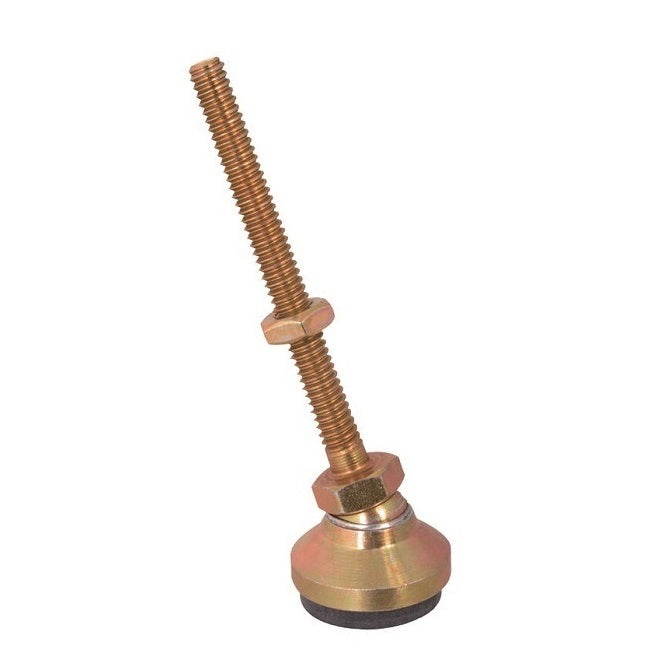

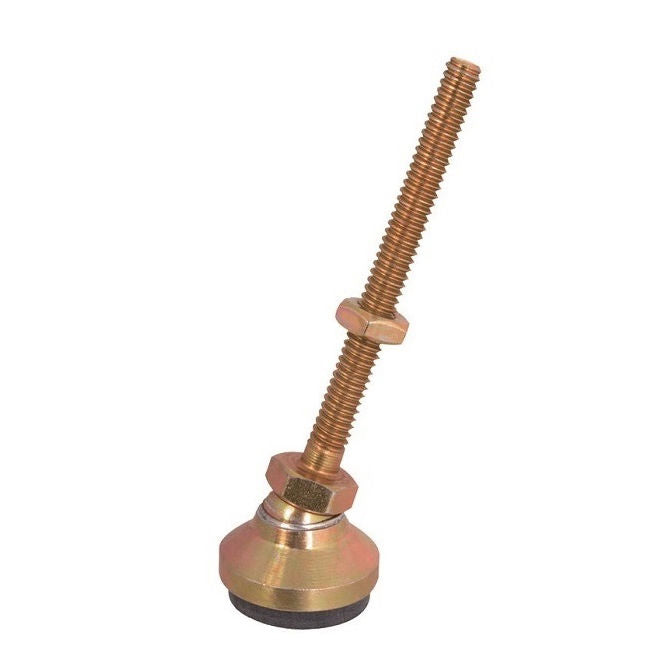

Mounts - Levelling Studded - Swivel - Gold Chromate - Rubber PaddedRubber Padded Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

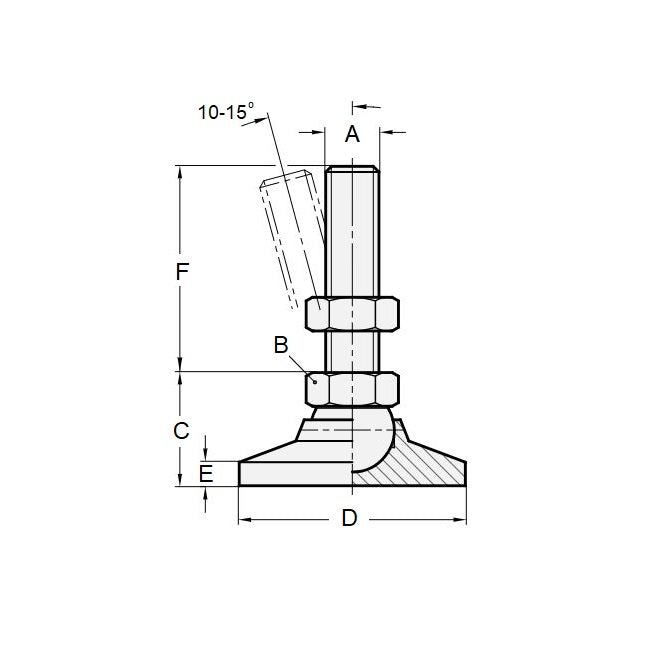

- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
35.0
mm
(Equiv. 1.378 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 11.00 mm
- Overall Height 86.0 mm
- Load Rating 2040 Kg
- Finish Gold Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 24.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM2040M16GR
- MLP80
- MLP-80
