BTU0200-021-F-C - Datasheet
MBA
Category Information

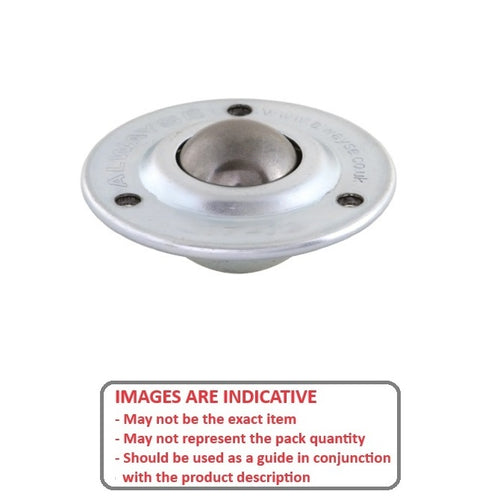

Ball Transfer Units - Flange Mount - Standard - Steel - SlimSlim Steel Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 200 kg

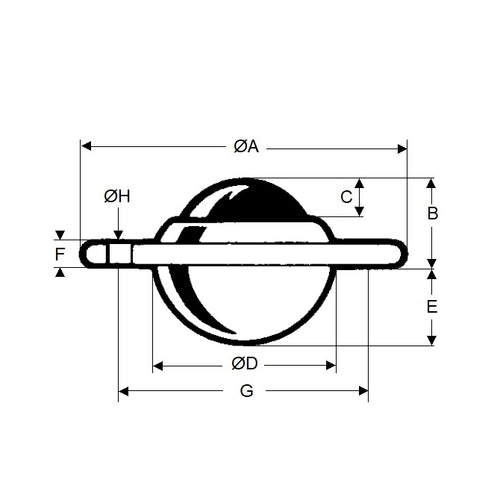

- Ball Height from Flange (B)
21.2
mm
(Equiv. 0.835 in.) - Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.) - Overall Height (L) 48.5 mm
- Ball Diameter 25.4 mm
- Body Height (E) 27.3 mm
- Flange Diameter (A) 94.6 mm
- Flange Thickness (F) 6.3 mm
- Fixing Hole Size (H) 7.0 mm
- Fixing Hole Distance (G) 76.2 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF2002
- SKF-2002
