Miniature Bearings Australia
SP1-064-028P-020-064-C - Datasheet
MBA
Category Information

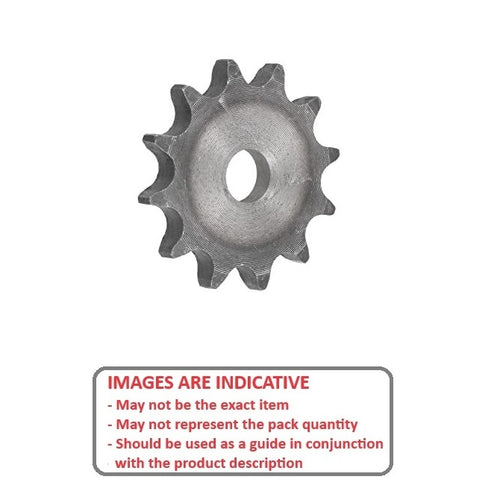

Sprockets - Roller Chain - Simplex - 25-1A - PlatePlate 25-1A Simplex Roller Chain Sprockets. 25-1 ASA 1/4 Inch
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Match with 6.35mm simplex chain
- American Standard 25-1 - 1/4 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 20

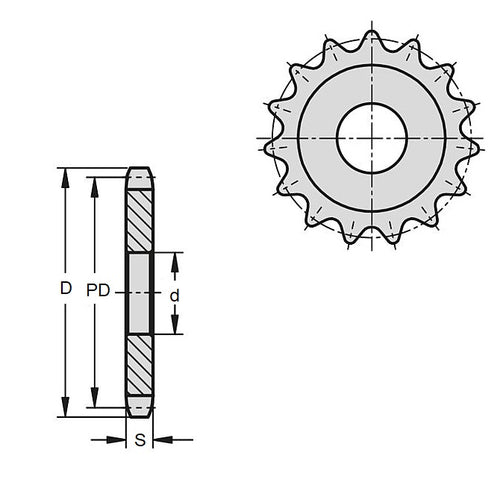

- PCD
40.41
mm
(Equiv. 1.591 in.) - Hub Diameter (D1) None
- Overall Width (E) 2.79 mm
- Standard Number 25-1A
- Type / Rows Type 9
- Approx Pilot Bore (d) 6.350 mm
- Locking Method None
Product Compliance and Data
Additional Resources
Cross References
- Gates 25A20
- A6C7-25020
- A6C725020
