UFL004N - Datasheet
MBA
Category Information

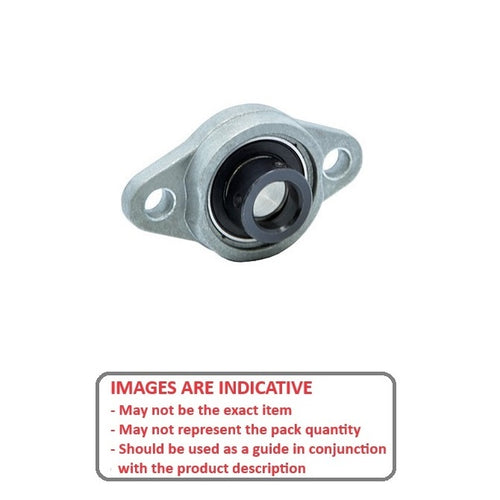

Housing Assembly - Flanged 2 Bolt - Non Aligning - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- An expanded range may be available on special order. Please enquire.
Product Data

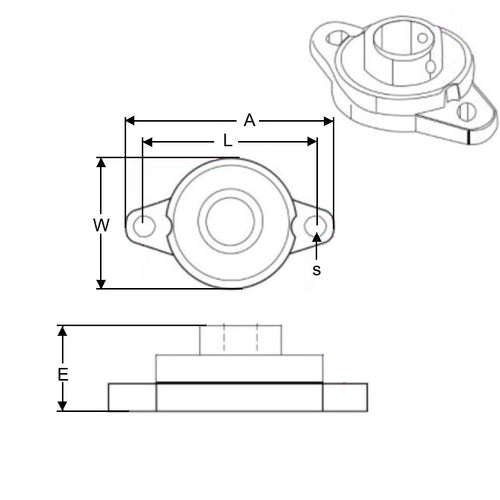

- Nominal Shaft Size
:
20.0
mm
(Equiv. 0.787 in.) - Width (W)
55.0
mm
(Equiv. 2.165 in.) - Overall Length (A)
90.0
mm
(Equiv. 3.543 in.) - Overall Height (E) 26.5 mm
- Bolt Hole Size (s) 10.0 mm
- Bolt Hole Centres (L) 71.0 mm
- Material Aluminium
