PWL-200-ST - Datasheet

MBA

Category Information

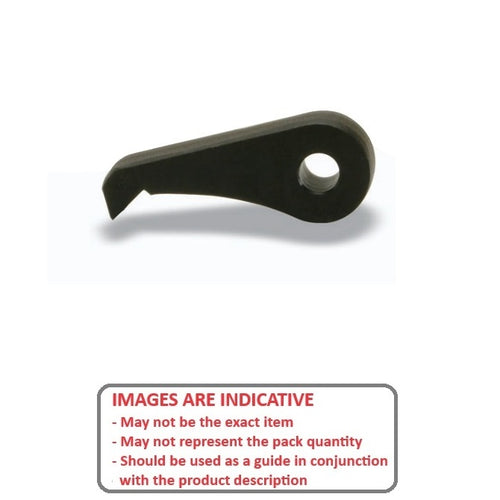

Ratchets and Pawls - Pawls

Pawls Ratchets and Pawls. Used with ratchets listed on this site.

  • An expanded range may be available on special order. Please enquire.

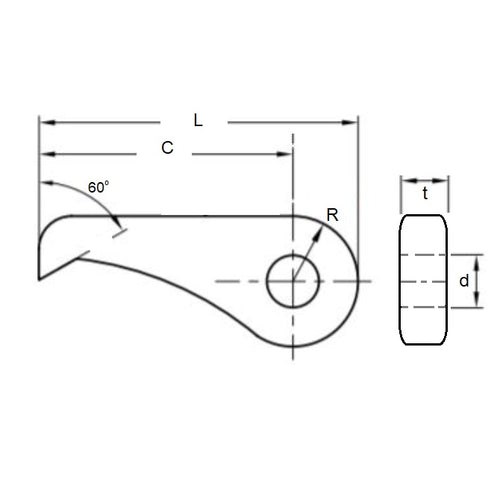

Product Data

  • Thickness (t) : 20 mm
    (Equiv. 0.787 in.)
  • Overall Length (L) 80 mm
    (Equiv. 3.15 in.)
  • Mounting Hole Diameter 12.00 mm H8
    (Equiv. 0.472 in.)
  • Swivel Radius (R) 15 mm
  • Hole Centre (c) 65
  • Type Type 2
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • SRT3C
