IP-199RS - Datasheet
MBA
Category Information

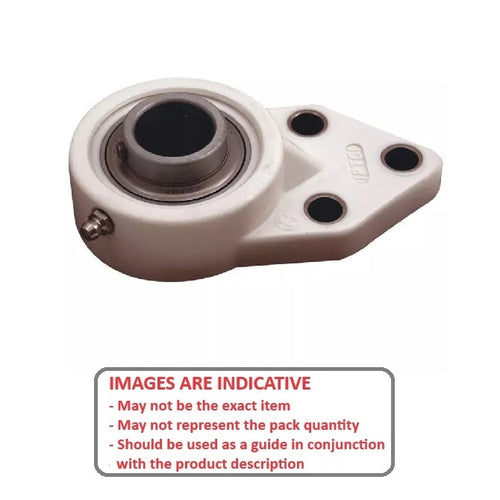

Housing Assembly - Offset - Thermoplastic and StainlessThermoplastic and Stainless Offset Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- An expanded range may be available on special order. Please enquire.
- Food grade.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
- Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.

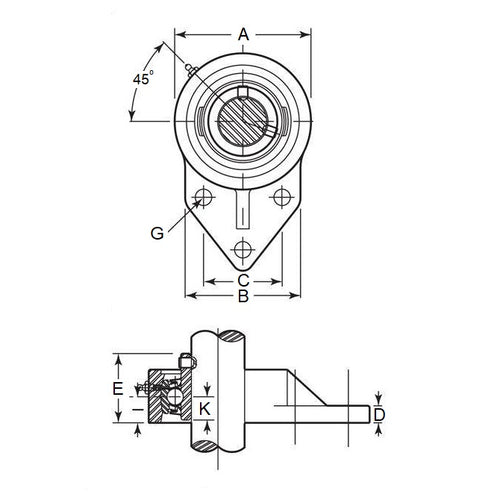

Product Data
- Inside Diameter
:
20.000
mm
(Equiv. 0.787 in.) - Centre Height (A)
64.000
mm
(Equiv. 2.52 in.) - Length (B)
62.000
mm
(Equiv. 2.441 in.) - Width (C) 38.100 mm
- Foot Height (D) 11.000 mm
- Bolt Centres (E) 33.300 mm
- Bolt Hole Size (G) 9.900 mm
- Height (H) 12.700 mm
