QR-02064-320-N70 - Datasheet
MBA
Category Information

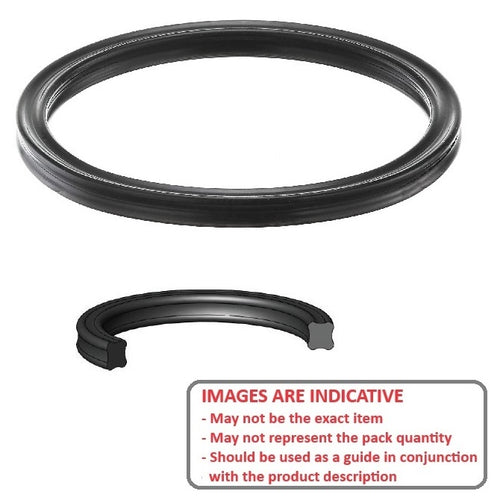

O-Rings - QuadQuad O-Rings. Quadrings or quattrorings reduce the amount of squeeze needed for positive seal, reducing friction and extending seal life.
- Quadrings or quattrorings reduce the amount of squeeze needed for positive seal, reducing friction and extending seal life.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- Also known as quad rings
Product Data

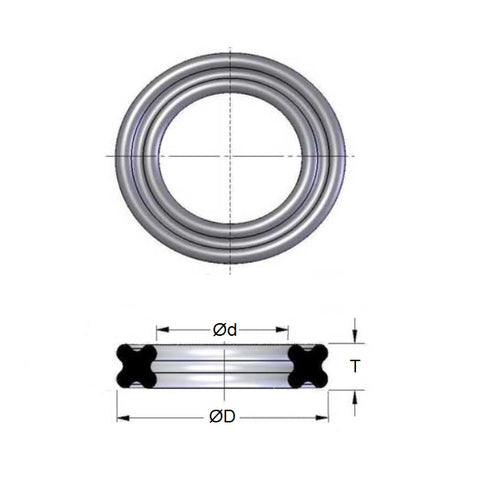

- Inside Diameter (ID) : 20.64 mm
- Section (t) 3.18 mm
- Material Nitrile NBR
- Hardness 70 Durometer
- Material Nitrile (NBR or BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® QR-211
- QR211
