NAST20R - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 20.00 mm
    • O.D. (D) 47.00 mm
    • Width (C) 15.80 mm
    • Inner Ring Width (B) 16.00 mm
    • OD Type Radius (500mm)
    • Dynamic Load Rating 1980.00 kgf
    • Static Load Rating 2500.00 kgf
    • Closures None
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NAST-20R
      • NAST20R
      View full details

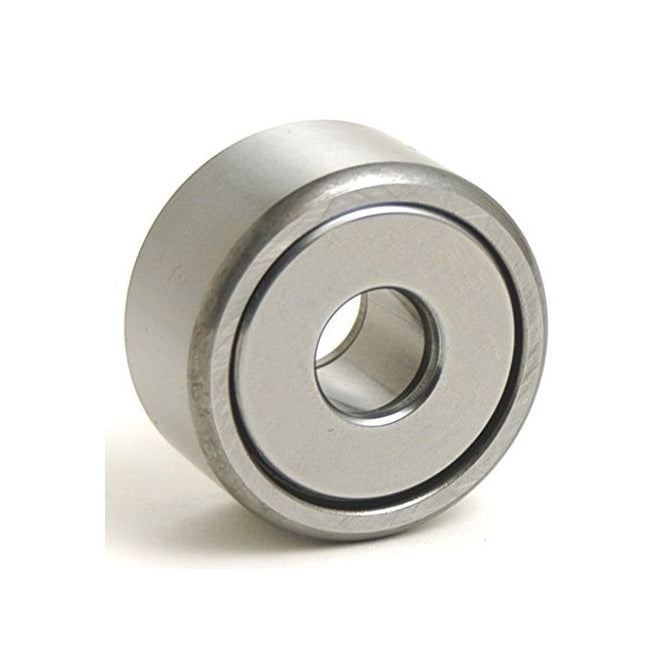

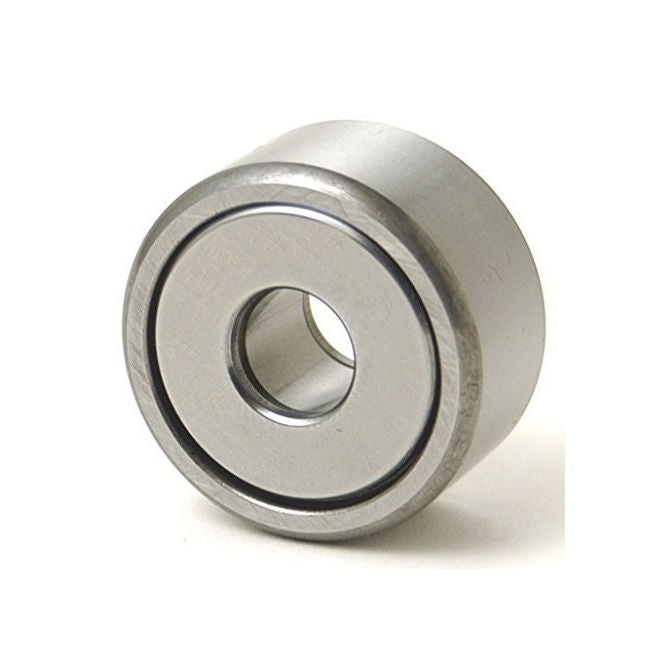

      NAST20RDiagramNAST20RImage
