Miniature Bearings Australia
NAST20 - Datasheet
MBA
Category Information

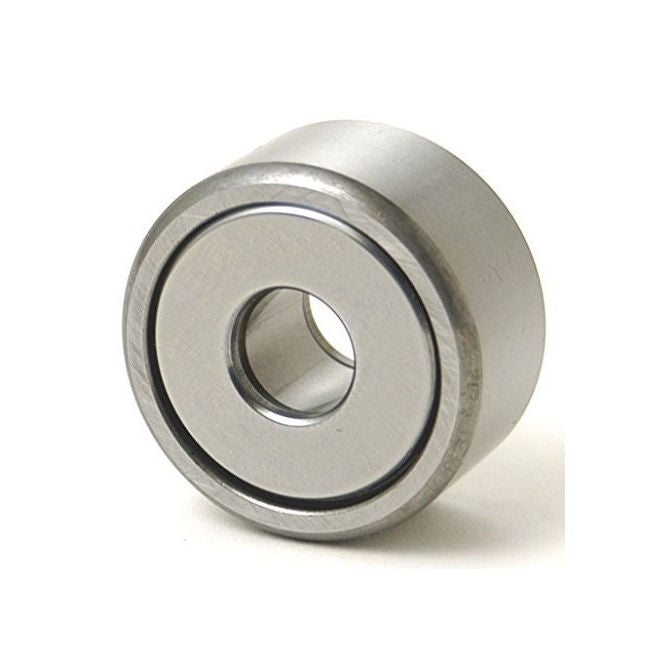

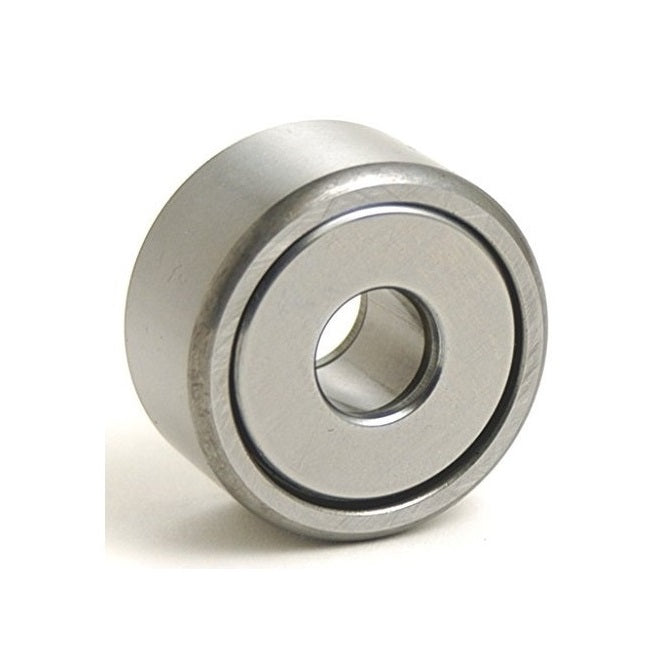

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data
- ID (d)
:
20.00
mm
(Equiv. 0.787 in.) - OD (D)
47.00
mm
(Equiv. 1.85 in.) - Width (C)
15.80
mm
(Equiv. 0.622 in.) - Inner Ring Width (B) 16.00 mm
- OD Type Cylindrical
- Dynamic Load Rating 1980.00 kgf
- Static Load Rating 2500.00 kgf
- Closures None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NAST-20
- NAST20
