6204-ZZ-NR-C3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data

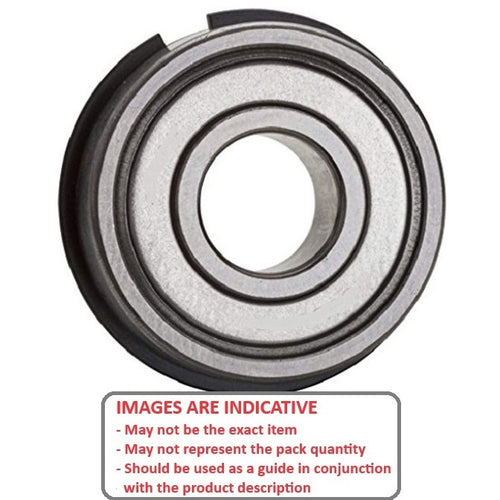

This bearing has a snap ring on the OD

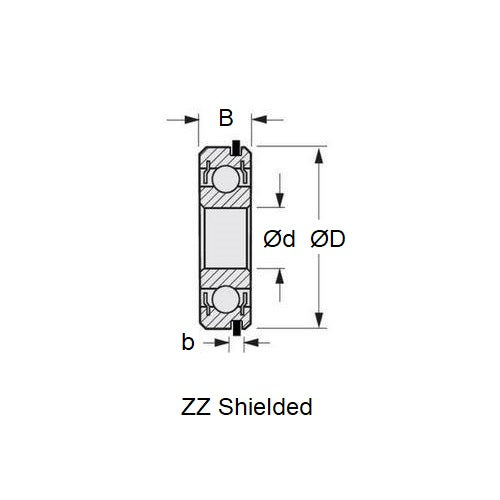

- ID (d)
:
20.000
mm
+ 0.000 / - 0.011
(Equiv. 0.787 in.) - OD (D)
47.000
mm
+ 0.000 / - 0.011
(Equiv. 1.85 in.) - Width (B)
14.000
mm
+ 0.000 / - 0.120
(Equiv. 0.551 in.) - Groove Width (b) 1.350 mm
- Closure Type Z
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 1.120 mm
- Max. Dist. To Groove Edge 2.460 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6204
- Limiting Speed 15000
- Cage Type Standard
- Static Load Rating KGf 684
- Dynamic Load Rating KGf 1310
- Radii 1.00 mm
- Inner Shoulder (UI) 29.50mm
- Outer Shoulder (UO) 40.90 mm
- Number of Balls 8
- Clearance C3 (13 to 28)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
