VKM204LH - Datasheet
MBA
Category Information

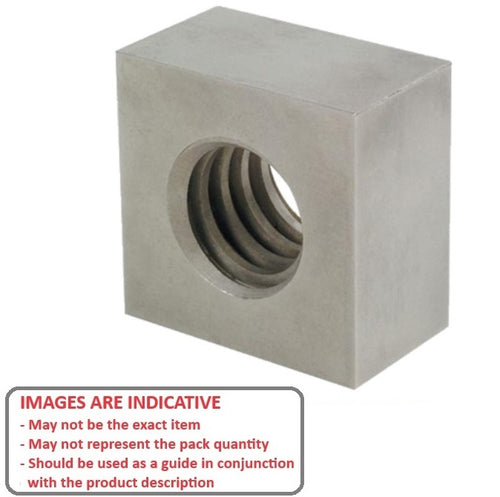

Leadscrew - Nuts - Metric - Square MetallicSquare Metallic Metric Nuts Leadscrew. Trapezoidal thread design. Use with metric leadscrew thread listed in separate category.
- An expanded range may be available on special order. Please enquire.
- Material: Carbon Manganese Steel S300 Pb (11 SMn Pb37). If welding, difficulties may arise with bubbling due to sulphur content.
- To be used with screws:- LFM, LSM, LRH, LSRH (Single Start).
- Manual control - Low rotation speeds - For clamping or locking functions - For receiving dead weights.
- For power transmission and continuous use, always use bronze nuts, never steel.
- Nuts and screws should always be lubricated with grease or oil.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

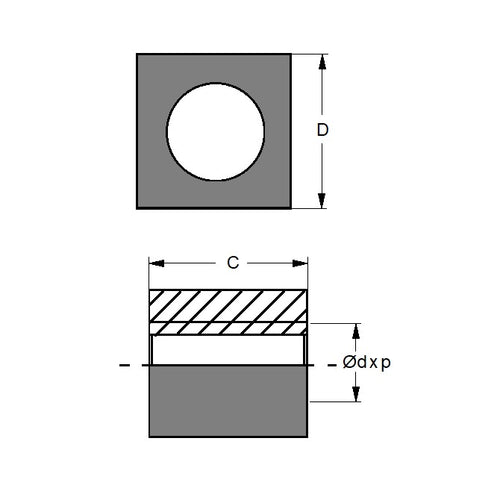

- Suitable Screw Diameter (d)
:
20.000
mm
(Equiv. 0.787 in.) - Lead / Pitch (P)
4
mm
(Equiv. 0.157 in.) - Direction Left Hand
- Width (D) 35 mm (h11)
- Length (C) 30 mm +/- 0.15
- Contact Surface 590 mm 2
Product Compliance and Data
Additional Resources
Cross References
- VKM204/LH
- VKM204LH
- VKM204-LH
