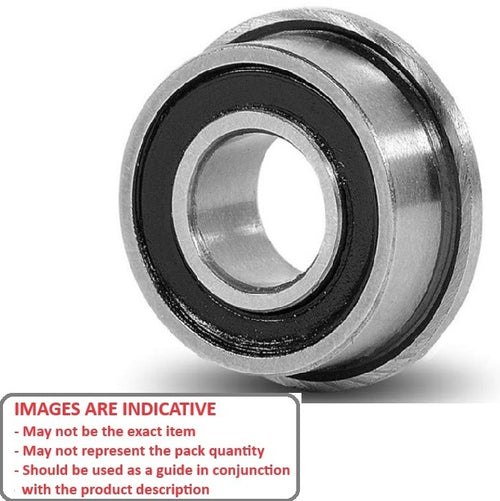

F6804-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

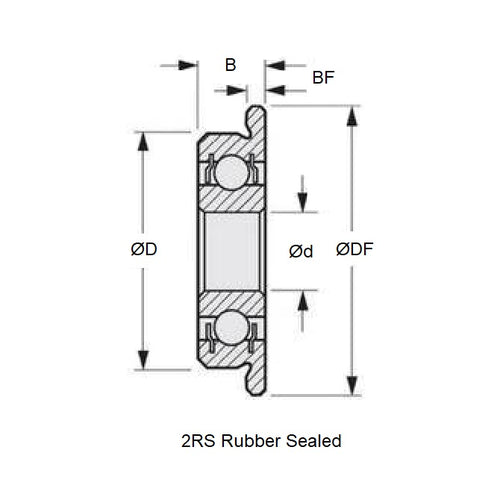

- ID (d)
:
20.000
mm
+ 0.000 / - 0.011
(Equiv. 0.787 in.) - OD (D)
32.000
mm
+ 0.000 / - 0.011
(Equiv. 1.26 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.120
(Equiv. 0.276 in.) - Flange Diameter (DF) 35.000 mm
- Flange Width (BF) 1.500 mm
- Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part F6804
- Limiting Speed 14280
- Cage Type Rivetted
- Static Load Rating KGf 251
- Dynamic Load Rating KGf 410
- Radii 0.30 mm
- Inner Shoulder (UI) 22.60mm
- Outer Shoulder (UO) 29.52 mm
- Number of Balls 13
- Clearance CN (5 to 20)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
