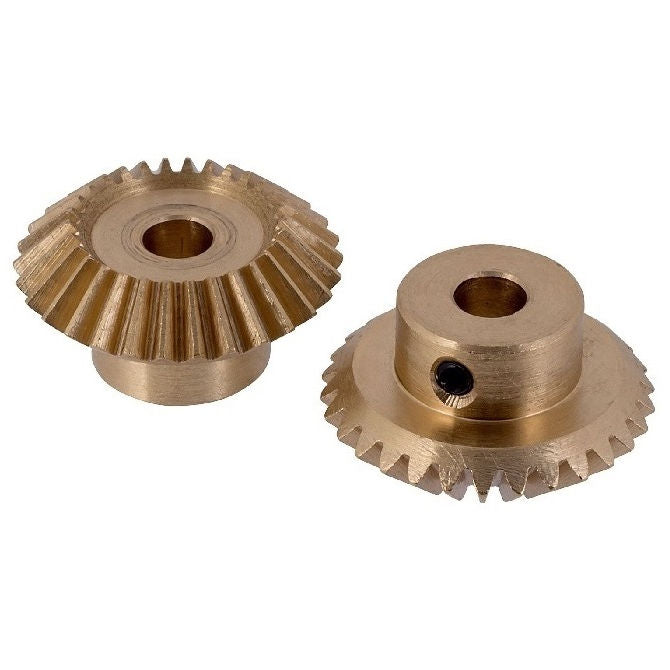

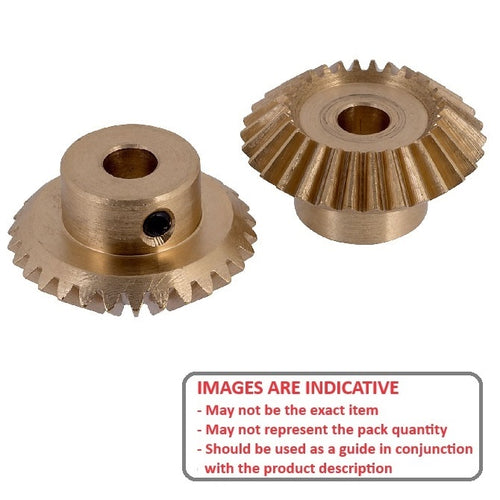

Gears - Mitre - Module 1.5 - Brass

Brass Module 1.5 Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle

  • An expanded range may be available on special order. Please enquire.
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

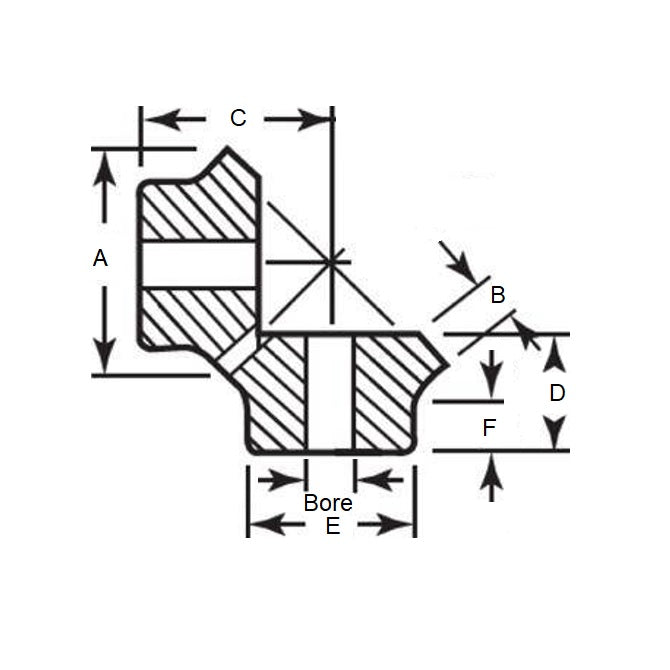

  • Number of Teeth : 20
  • Pitch Diameter (pd) 30.000 mm
    (Equiv. 1.181 in.)
  • Bore (d) 12.000 mm
    (Equiv. 0.472 in.)
  • Overall Length (L) 15.500 mm
  • Hub Diameter (hd) 18.000 / No Set Screw mm
  • Each
  • Hub Projection (F) 7.00 mm
  • Mounting Distance (C) 25.000 mm
  • Face Width (B) 7.000 mm
  • Material ISO 8 / Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • A 1B 4MY15020
  • A1B4MY15020
