W0200-FP-025-100-C - Datasheet
MBA
Category Information

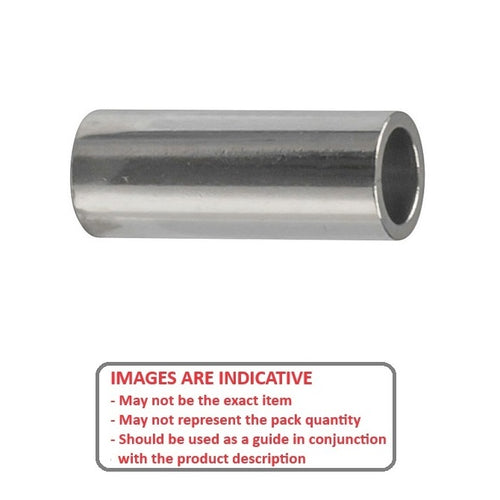

Spacers - Through Bore Round - Carbon SteelCarbon Steel Through Bore Round Spacers. Shaft spacers - Steel
- An expanded range may be available on special order. Please enquire.
Product Data
- ID (d)
:
20.000
mm
+ 0.1 / + 0.3
(Equiv. 0.787 in.) - OD (D)
25.000
mm
+ 0.0 / - 0.2
(Equiv. 0.984 in.) - Length (L)
10.000
mm
+ 0.0 / - 0.1
(Equiv. 0.394 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-KNCLA20-25-10
- CKNCLA202510
