G021P-020-V24-064-064-C - Datasheet
MBA
Category Information

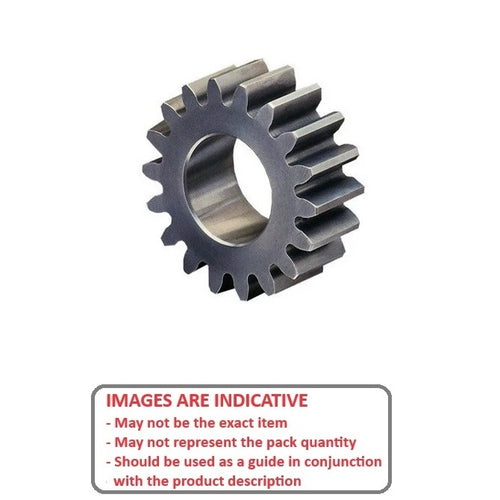

Gears - Spur - Hubless - 24DP - SteelSteel 24DP Hubless Spur Gears. PCD in mm = No. of Teeth x 1.05833 (1/24 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 24 teeth
- 24 Diametrical Pitch. Approx 3.33mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 20

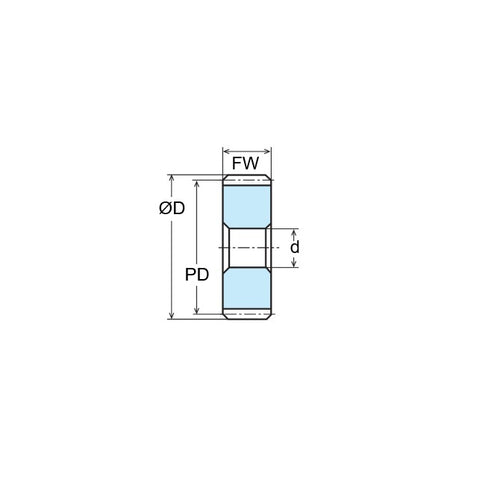

- Pitch Circle Diameter (PD)
21.16
mm
(Equiv. 0.833 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Outside Diameter (OD) 23.266 mm
- Face Width (FW) 6.35 mm
- Type Hubless
- Quality Commercial
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- G021B20V24064064CN
