GC-201-155-237-R17 - Datasheet
MBA
Category Information
Grommets - Natural Rubber - ClosedClosed Natural Rubber Grommets. Closed Natural Rubber Grommets
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- 50 +/-5 Durometer
- Dustproof with Approx 0.5mm thick Membrane
- Easy to Install
- Dust protection
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

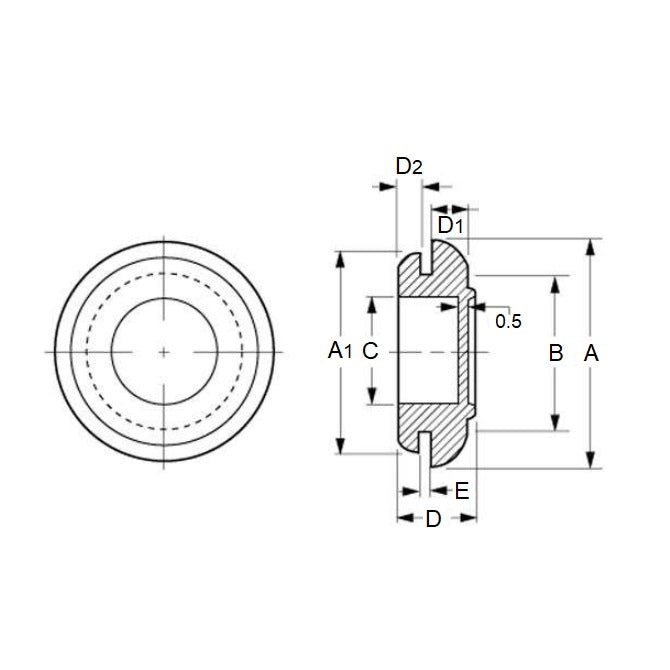

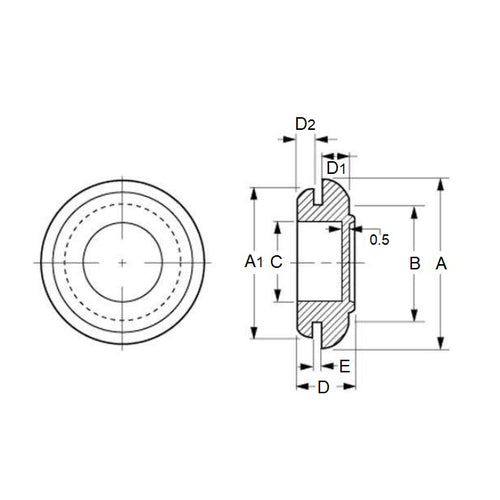

- Plate Hole Diameter (B)
:
20.10
mm
(Equiv. 0.791 in.) - Inside Diameter (C)
15.50
mm
(Equiv. 0.61 in.) - Outside Diameter (A)
23.70
mm
(Equiv. 0.933 in.) - Outside Diameter (A1) 23.70 mm
- Thickness (D) 6.1 mm
- Plate Thickness (E) 1.70 mm
- Quantity Per Card 3
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- KT KTGMC2015S
