CC-200-222-C - Datasheet
MBA
Category Information

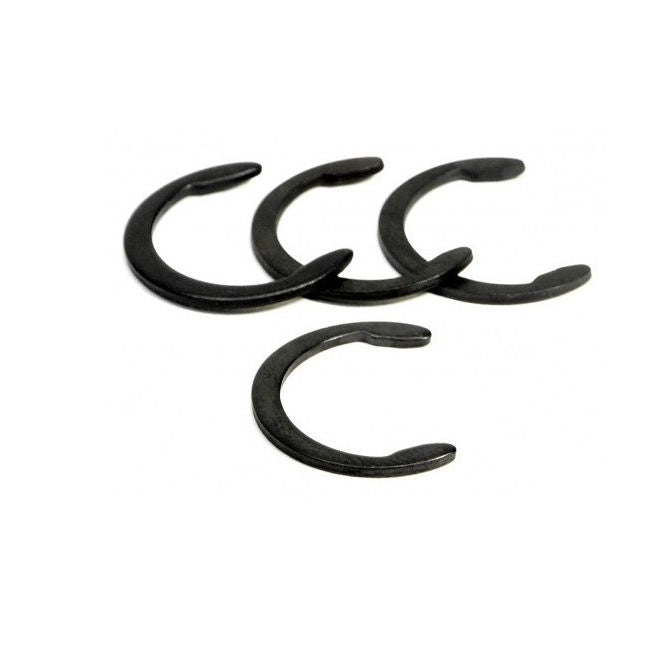

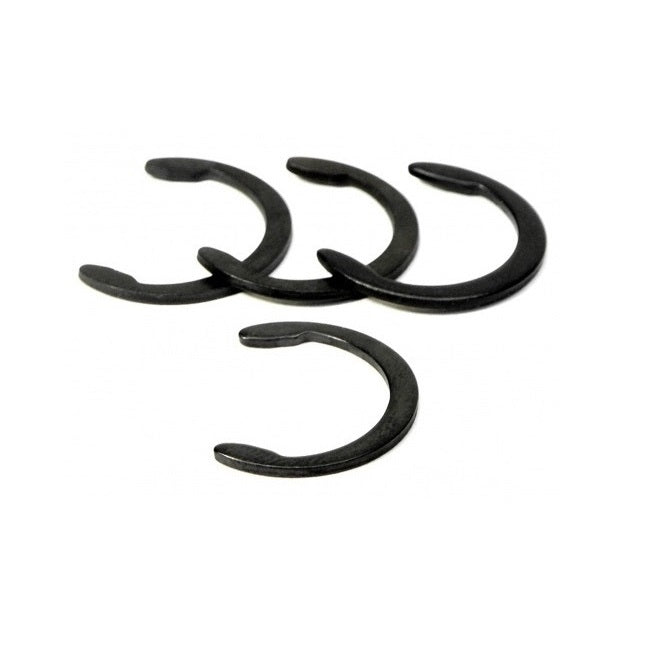

Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.

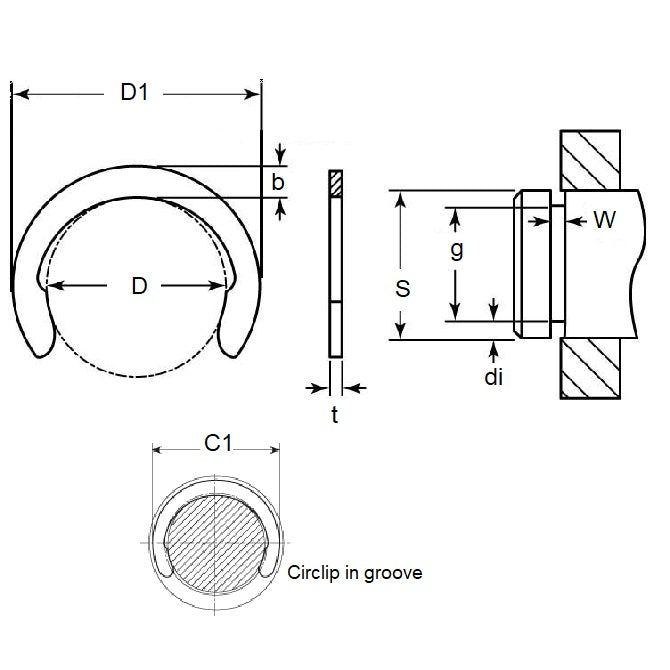

Product Data
- Groove Diameter (G)
:
20.04
mm
(Equiv. 0.789 in.) - Shaft Diameter (S)
22.23
mm
(Equiv. 0.875 in.) - Thickness (t)
1.07
mm
(Equiv. 0.042 in.) - Clip OD in groove (C1) 25.65 mm
- Clip OD Loose (D1) 25.17 mm
- Groove Width (W) 1.17
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Military 16632-087
- Military 16632-087/B
- Military 16632-087-B
- Waldes 5103-087
- Waldes 5103-087/B
- Waldes 5103-087-B
- Ellison 9103-087
- Ellison 9103-087/B
- Ellison 9103-087-B
- NoCor C-087
- Rotor Clip C-087
- NoCor C-087/B
- Rotor Clip C-087/B
- NoCor C-087-B
- Rotor Clip C-087-B
- 16632087/B
- 16632087B
- 5103087/B
- 5103087B
- C087
- C087/B
- C087B
- N1800-087-B
- N1800087/B
- N1800-087/B
- N1800-0087APP
- N1800087B
- N18000087APP
- 9103087
- 9103087/B
- 9103087B
